Three-Way Ball Valve

Description

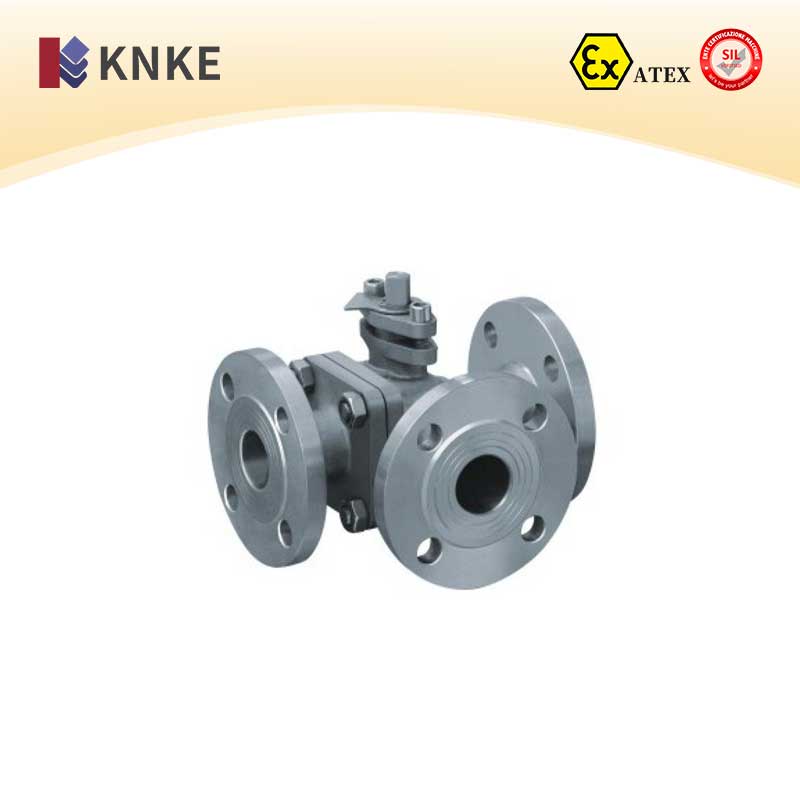

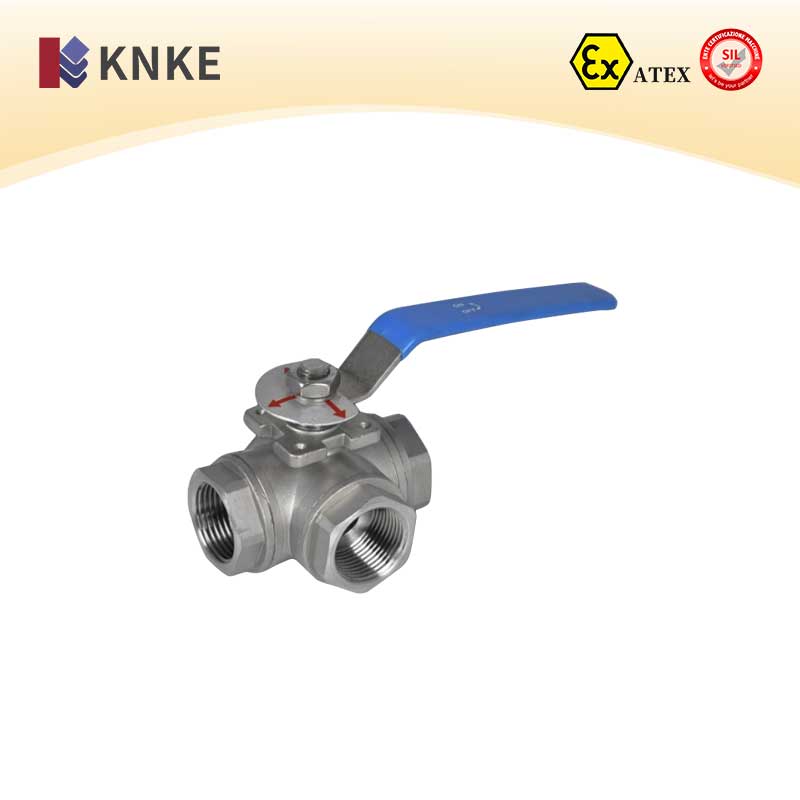

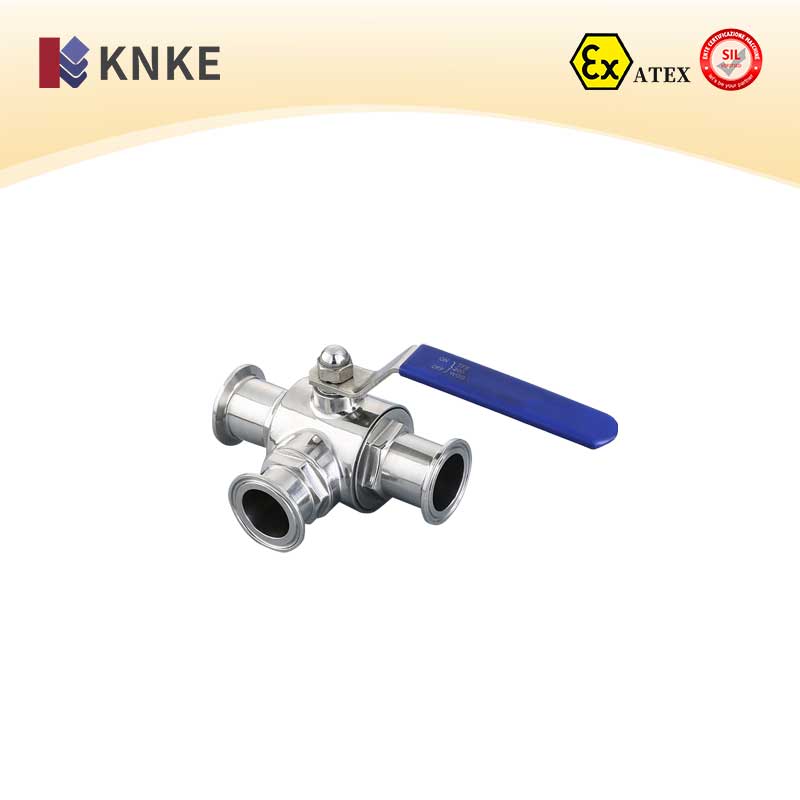

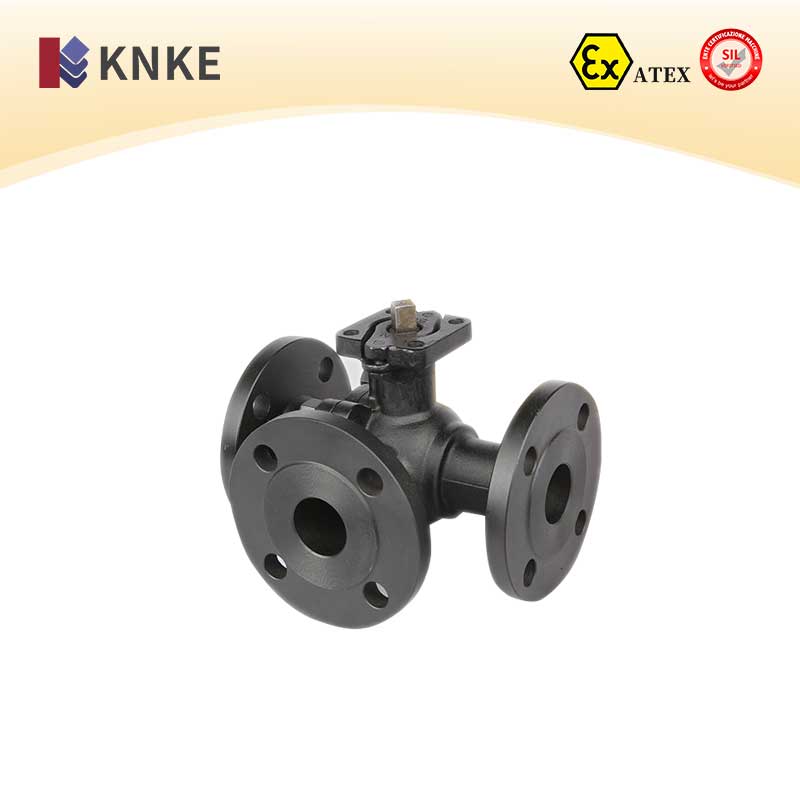

Overview of KNKE Three-Way Ball Valve

The KNKE Three-Way Ball Valve is designed for reliable performance in fluid distribution and flow control. With T-type and L-type configurations, it can connect or cut off three orthogonal pipelines, allowing for splitting and merging of fluids. This valve is compact, easy to install, and designed for use in high-density pipeline systems such as blast furnace water supply systems and circulating water systems. The valve’s body is precision-cast, ensuring excellent performance and durability, while its sealing materials provide high resistance to wear, corrosion, and high temperatures.

Key Features of KNKE Three-Way Ball Valve

• T-Shape and L-Shape Options: Provides versatility for flow distribution and merging, ensuring smooth operation.
• Compact and Lightweight: Designed for space-saving installations, ideal for systems with high-density piping.
• Durable and Long-Lasting: Featuring carbonized PTFE seals for excellent wear and self-lubricating properties, offering extended service life.
• Easy Operation: The valve can be opened or closed with a 90° rotation, making it easy to control remotely.
• Wide Application: Suitable for water, oil, gas, and non-corrosive as well as mild acidic or basic media.
• Low Maintenance: The ball valve structure is simple, and the sealing ring is typically removable for easy replacement.
• High Pressure & Temperature Resistance: Operates reliably under pressures from 1.6MPa to 6.4MPa and temperatures up to 350°C.

Technical Parameters

• Nominal Diameter: DN15 to DN300
• Nominal Pressure: 1.6MPa to 6.4MPa
• Applicable Media: Water, Oil, Gas, Non-corrosive Fluids, Acidic and Alkaline Fluids
• Applicable Temperature: ≤350°C

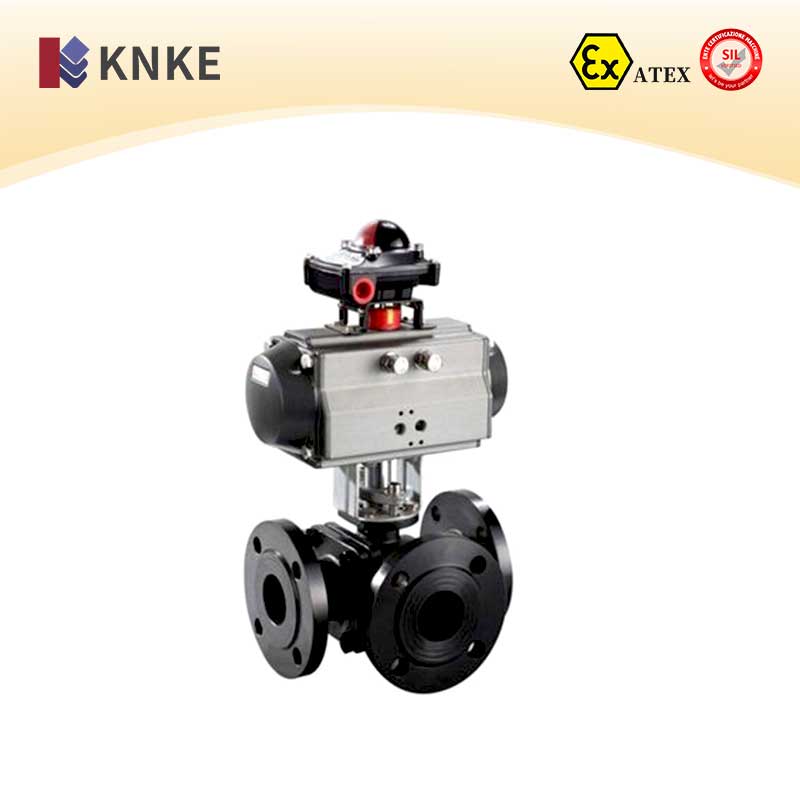

• Drive Options: Manual, Electric, Pneumatic
• Body Material: Cast Steel, Stainless Steel
• Standards: GB, DIN, API, ANSI

Materials of Major Parts

Valve Design and Functionality

• T-Shaped and L-Shaped Configurations: T-shaped valves can connect or cut off the third pipeline, while L-shaped valves only connect two orthogonal pipelines, making them ideal for fluid distribution in complex systems.
• Compact Structure: The valve features a streamlined design to save space and facilitate easy installation in dense pipeline environments.
• Durability: Constructed with high-quality materials to withstand high pressures and temperatures, ensuring long-term performance in demanding environments.
• Sealing Performance: Carbonized PTFE seats and seals offer excellent wear resistance, enhancing the valve’s service life.
• Low Operational Force: The valve operates with low torque, making it easy to handle and requiring less effort to turn.

Performance Range

Design Standards and Specifications

• Design Standards: API608, BS 5351, GB/T 12237
• Structural Length: ASME B16.10, GB/T 12221
• Connection Standards: ASME B16.5, GB/T9113, JB/T79, HG/T 20592, HG/T 20615
• Pressure Testing: API 598, GB/T 13927, GB/T 26480
• Pressure-Temperature Rating: ASME B16.34, GB/T 12224

Applications of KNKE Three-Way Ball Valve

• Industries: Petrochemical, Chemical, Pharmaceutical, Water Treatment, Power Generation
• Applications: Fluid control in complex piping systems, including water supply, circulating water systems, and high-density pipeline environments.

Performance Characteristics

• Reliable Sealing: The valve body and ball seat materials ensure a tight seal with minimal leakage.
• Wide Range of Media Compatibility: Can be used for non-corrosive media as well as acidic and alkaline liquids, providing flexibility in industrial applications.
• Low Maintenance and Cost-Effective: The simple design and removable sealing ring facilitate easy maintenance, reducing overall operational costs.
• Easy Handling and Control: The valve’s 90° rotation makes it quick and easy to operate, suitable for remote control applications.
