Description

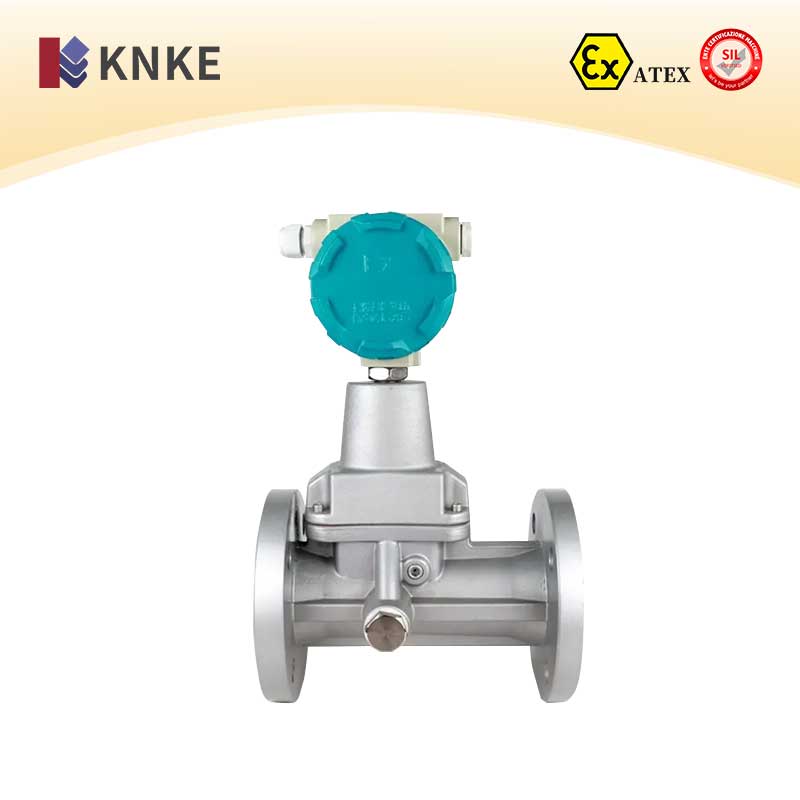

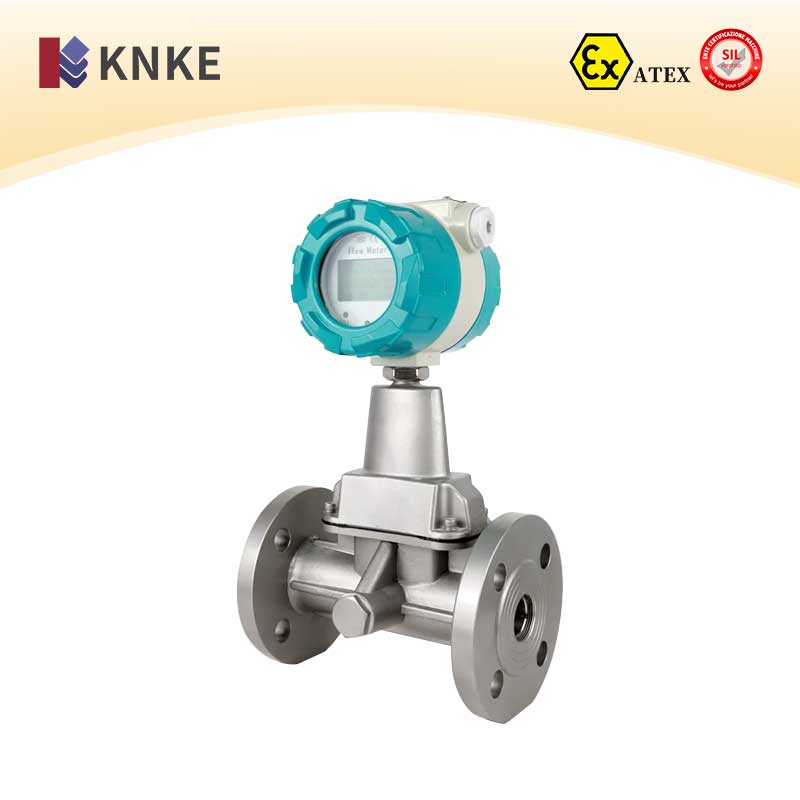

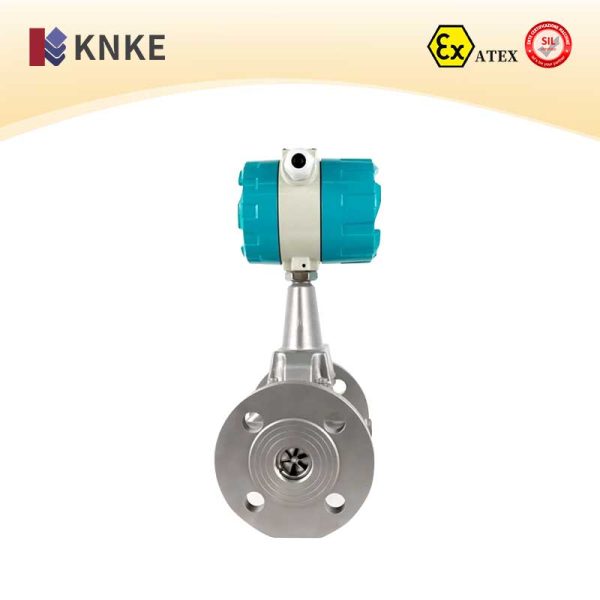

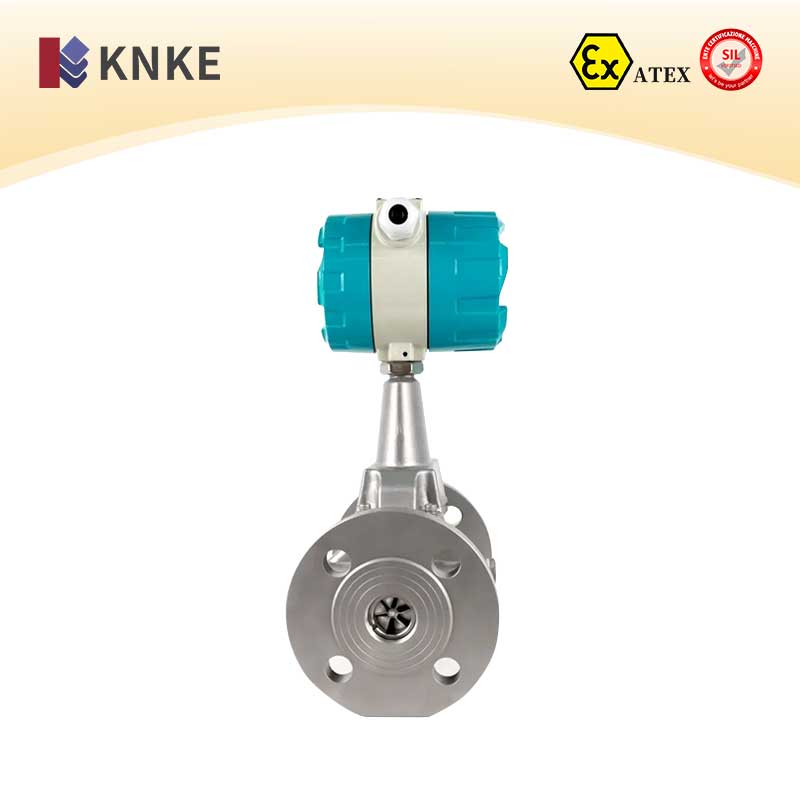

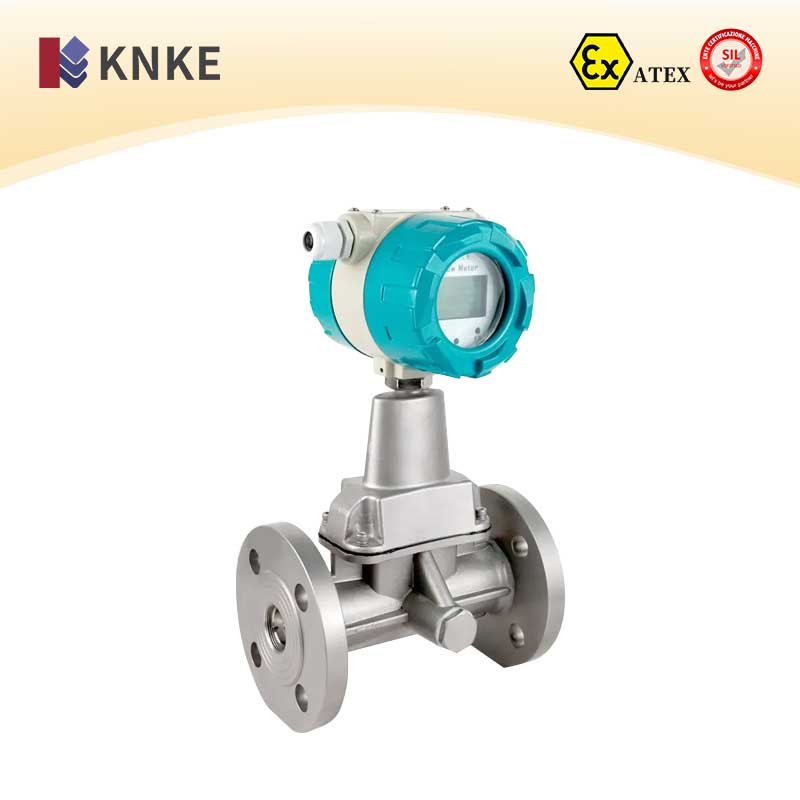

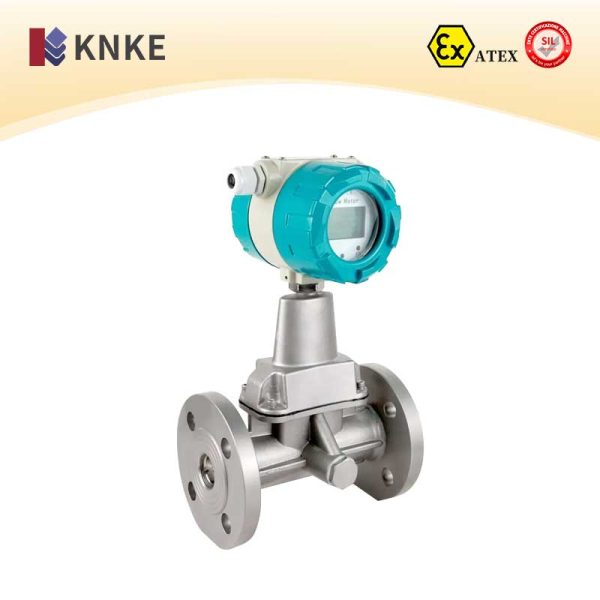

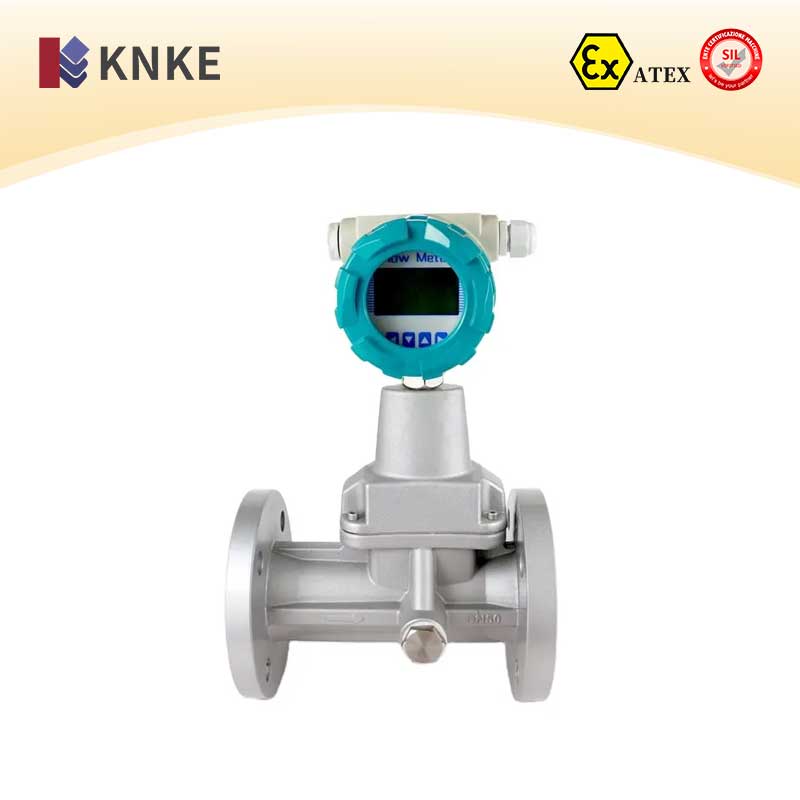

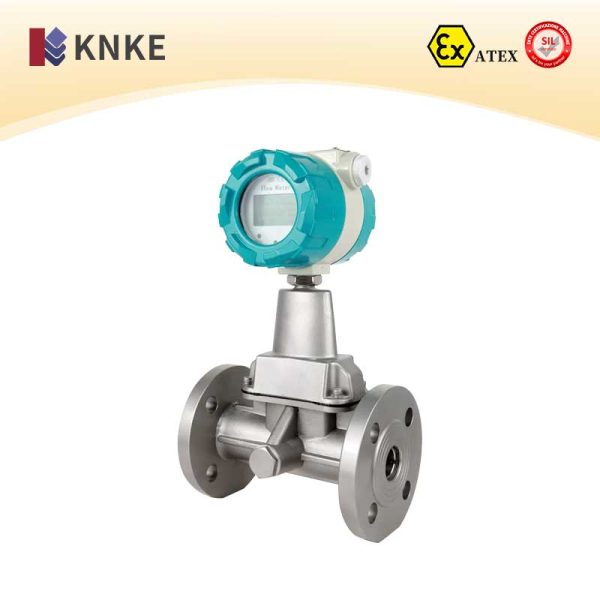

Overview of the KNKE Swirl Flow Meter
The KNKE Swirl Flow Meteris an advanced gas flow measurement device, designed and developed to meet the highest industry standards. This flow meter integrates the measurement of flow, temperature, and pressure, offering automatic compensation for temperature, pressure, and compressibility factors. As a result, it is the ideal solution for gas measurement in industries such as petrochemical, power generation, metallurgy, and urban gas supply.
Unlike conventional flow meters, the KNKE Swirl Flow meter provides accurate and reliable performance over a wide range of conditions. It is particularly effective in applications like oilfield and city natural gas metering, where precision is critical.
Technical Parameters
| Parameter | Value |
| No Moving Parts | Ensures high reliability and longevity |
| Chip Type | 16-bit microprocessor, compact and efficient |
| Display | Chinese dot matrix, intuitive and user-friendly |
| Data Storage | EEPROM, can save up to 1 year of historical data |
| Output Signals | Frequency pulse, 4–20mA analog signal, RS485 |
| Alarm Outputs | Multiple physical parameters available for user selection |
| Power Consumption | Low, supports internal battery or external power supply |
| Display Rotation | 360° adjustable for easy installation |
| Compatibility | Interchangeable sensors for pressure and temperature |
How the KNKE Swirl Flow meter Works
The flow sensor’s design mimics the profile of a Venturi tube. A set of spiral guide blades at the inlet directs the fluid into a swirling motion. As the fluid enters the diffuser section, it experiences secondary rotation due to backflow, forming a gyroscopic vortex precession. This precession frequency directly correlates with the flow rate, independent of fluid properties and density.
The sensor measures this frequency, which is then amplified, filtered, and converted into a pulse signal proportional to the flow velocity. These signals, along with temperature, pressure, and other readings, are processed by the microprocessor and displayed on the LCD screen, providing real-time data on flow, temperature, and pressure.
Key Features of the Swirl Flow meter
- No Moving Parts: This design minimizes wear and tear, reducing maintenance needs and ensuring long-term reliability.
- Compact and Efficient: A 16-bit microprocessor provides excellent performance with high integration and low power consumption.
- Intelligent and Versatile: The flow meter integrates a flow probe, microprocessor, and pressure and temperature sensors into a compact structure, offering real-time compensation for pressure and temperature changes.
- Dual Detection Technology: This technology strengthens the signal and minimizes interference from pipeline vibrations, ensuring stable and accurate readings.
- Smart Anti-Vibration Technology: This feature helps eliminate noise and disturbances caused by pressure fluctuations or vibrations in the pipeline.
- Easy-to-Read Display: The Chinese dot-matrix LCD display shows key data, including volume flow, standard volume flow, total flow, and pressure/temperature parameters.
- Data Storage: The flow meter uses EEPROM technology, enabling parameter settings to be saved and historical data to be stored for up to one year.
- Multiple Output Options: You can choose between frequency pulses, 4-20mA analog signals, or RS485 for integration with control systems or remote monitoring.
Applications of the Swirl Flow Meter
The KNKE Swirl Flow Meter is suitable for a wide range of applications, making it a versatile solution for various industries:
- Petrochemical Industry: Accurately measures natural gas, refinery gases, and other industrial gases.
- Power Generation: Ideal for monitoring gas flow in combustion processes.
- Metallurgical Industry: Used in blast furnaces and other high-temperature gas flow applications.
- Urban Gas Supply: Perfect for city natural gas distribution and trade metering.
- General Gas Measurement: The KNKE Swirl Flow Meter is suitable for any industry requiring reliable and precise gas flow measurement.
