Description

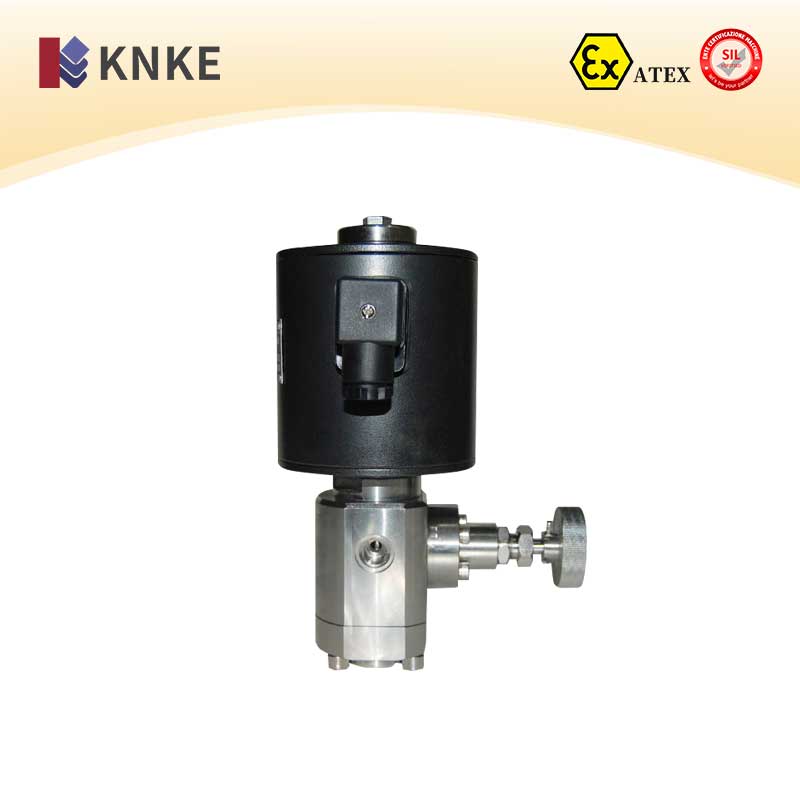

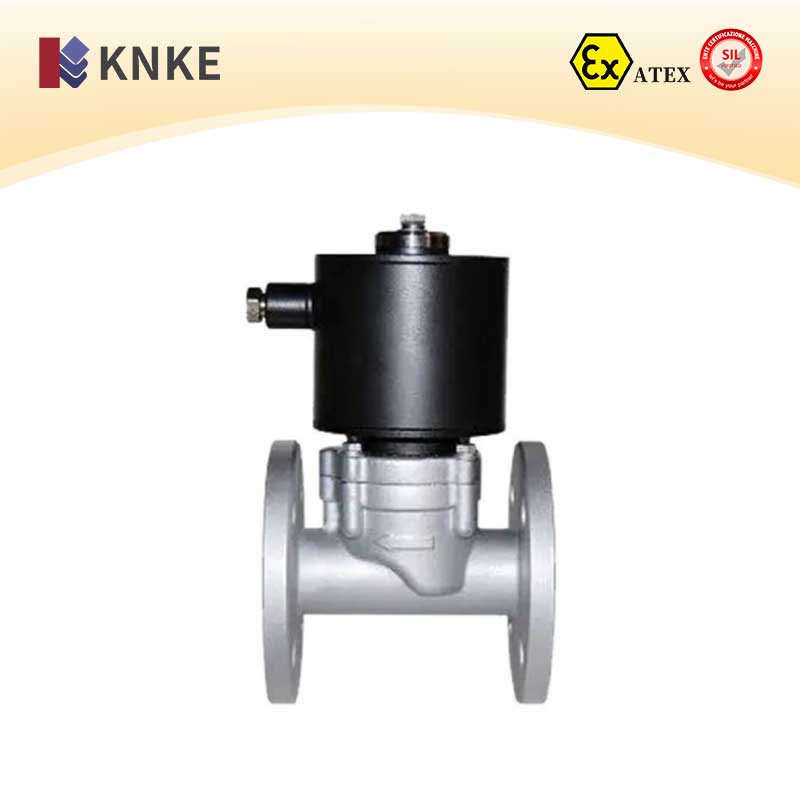

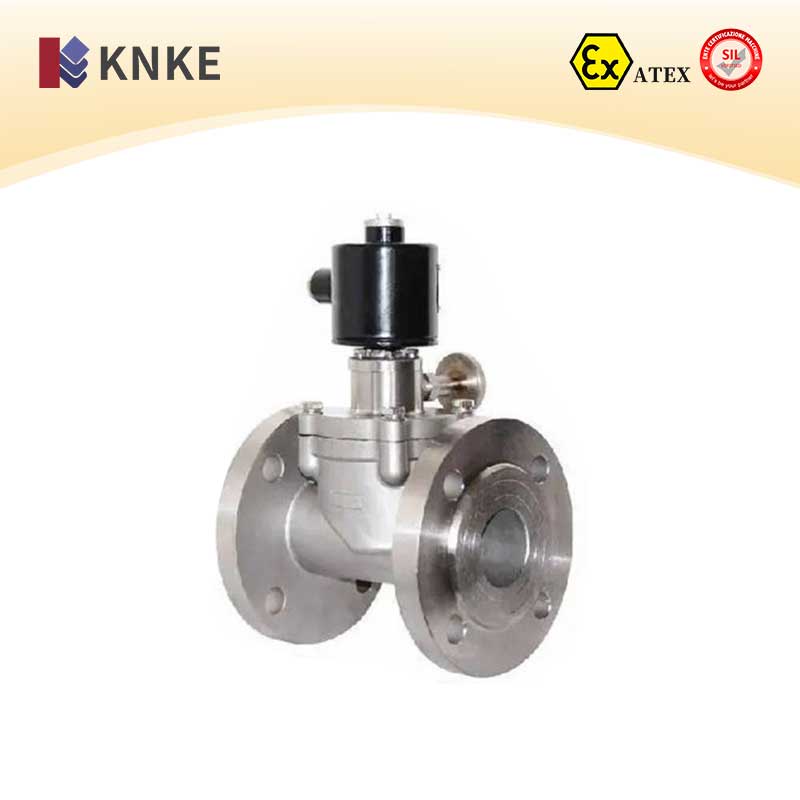

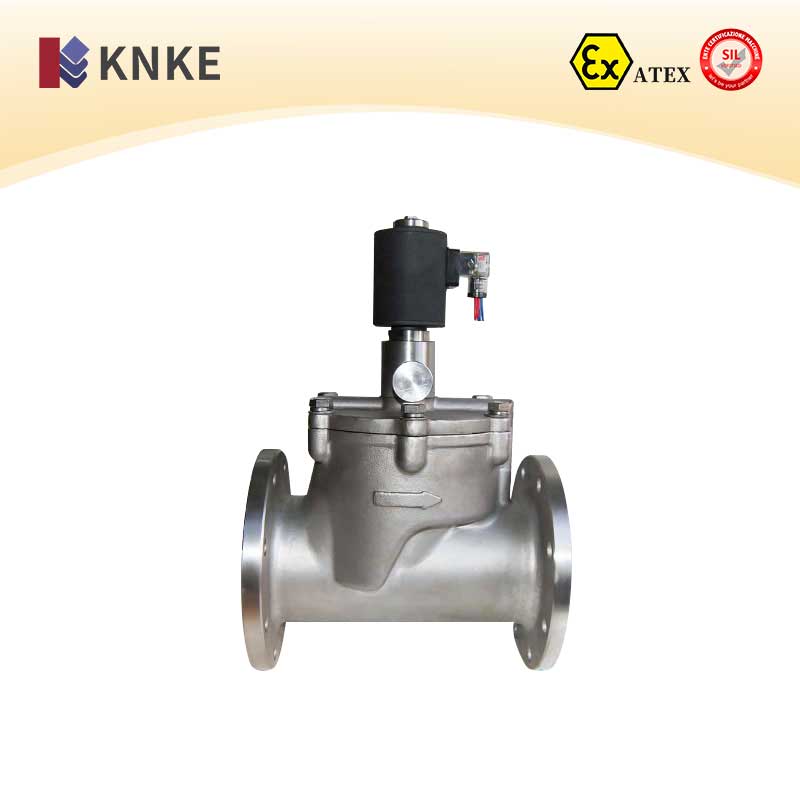

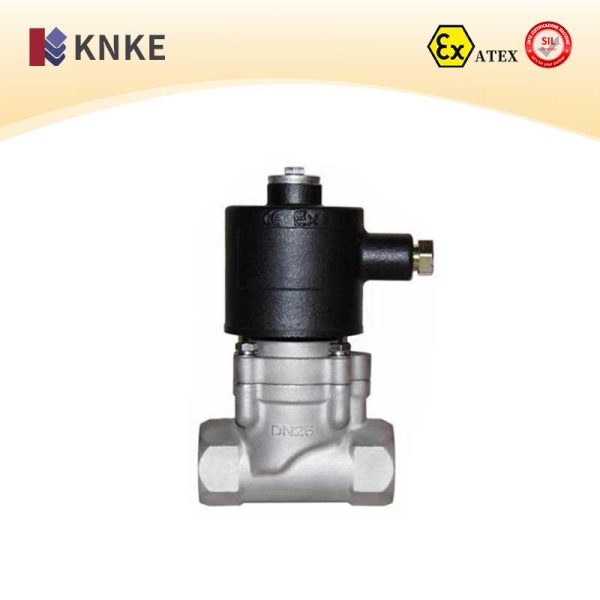

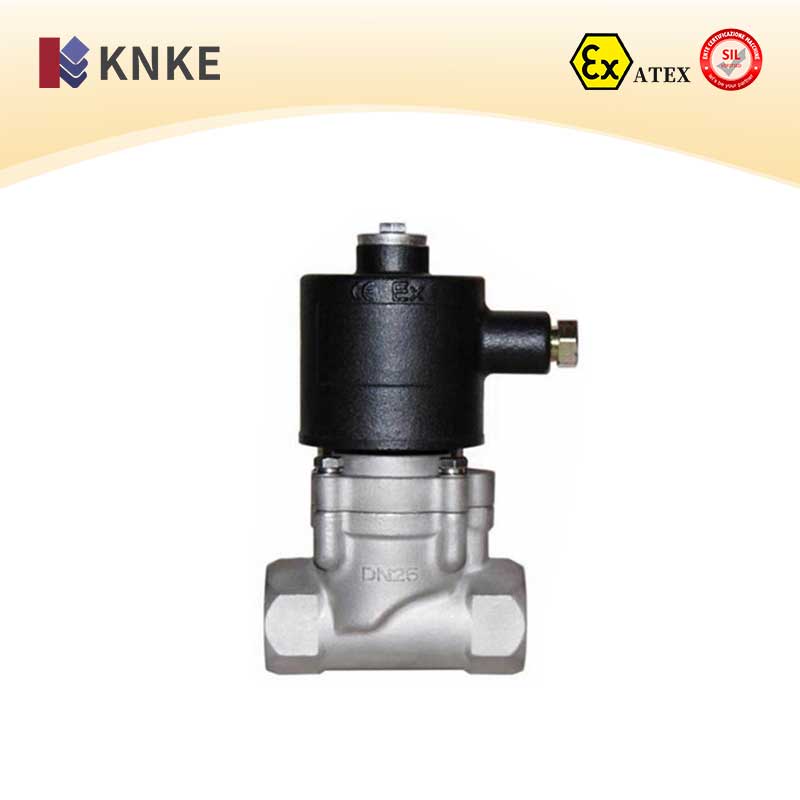

Overview of KNKE Pilot-Operated Solenoid Valve
KNKE’s Pilot-Operated Solenoid Valve is built with a forged valve body and a stainless steel piston. It offers a wide range of flow capacities (DN1–DN100) and operating pressures (0.5–400MPa). Furthermore, it comes with multiple connection types, such as flanged, screw thread, and welded, ensuring its compatibility with various systems. This valve is particularly suitable for high-pressure applications in industries like petrochemicals and testing equipment.
Key Features of KNKE Pilot-Operated Solenoid Valve
- High-Performance Sealing: The stainless steel piston provides excellent dynamic sealing, which significantly enhances its service life. As a result, the valve operates with high reliability even in challenging conditions.
- Wide Pressure Range: It operates within a pressure range of 0.5–400 MPa, making it suitable for a broad array of industrial applications. Additionally, this pressure range ensures the valve can handle demanding environments.
- Versatile Voltage Options: Available in multiple voltage configurations, including 380VAC, 220VAC, 24VDC, and more. Thus, it offers flexibility in installation, depending on your power source.
- Environmentally Robust: The valve is designed to work in extreme temperatures, ranging from -10°C to 100°C, and is capable of withstanding harsh environmental conditions.
- Reliable Operation: The valve responds quickly to electrical signals, even after long periods of inactivity. Consequently, it ensures fast and consistent performance over time.
Technical Parameters of KNKE Pilot-Operated Solenoid Valve
| Parameter | Specification |
| Nominal Diameter (DN) | DN1 – DN100 |
| Pressure Range | 0.5 MPa – 400 MPa |
| Control Mode | Energized Open / De-energized Close |
| Selectable Temperature | -10~+50°C, -30~+85°C, -50~+100°C |
| Voltage Options | 380VAC, 220VAC, 24VDC, 110VDC, etc. |
| Valve Body Material | 304 Stainless Steel, 316 Stainless Steel |
| Environmental Temperature | -10~+50℃、-30~+85℃、-50~+100℃、 |
| Fluid Temperature | >-200°C, >-60°C, >-40°C, <+60°C, <+120°C |
Applications of KNKE Pilot-Operated Solenoid Valve
This solenoid valve is ideal for high-pressure systems and is widely used across industries like:
- Petrochemical: For controlling high-pressure flow in petrochemical processing systems.
- Automotive: Utilized in automotive systems for precise fluid control.
- Power Plants: Employed in power generation systems where reliable control valves are crucial.
- Chemical Processing: Used in the chemical industry to manage high-pressure fluids and gases.
Performance Characteristics
- Leak-Free Operation: Thanks to its piston design, this valve ensures minimal leakage under high-pressure conditions, thus guaranteeing a longer operational lifespan.
- Energy-Efficient: The energy-saving coil ensures reduced power consumption while maintaining reliable operation. Therefore, it is an environmentally friendly option for your systems.
- Quick Response: This valve reacts quickly to electrical signals, offering precise control and reliable performance, even in the most demanding environments.
In summary, the KNKE Pilot-Operated Solenoid Valve offers excellent sealing performance, energy efficiency, and adaptability to various industrial applications. Whether you need a reliable valve for petrochemical, power, or automotive systems, this valve is a robust choice for managing high-pressure fluids, gases, and oils.
