Description

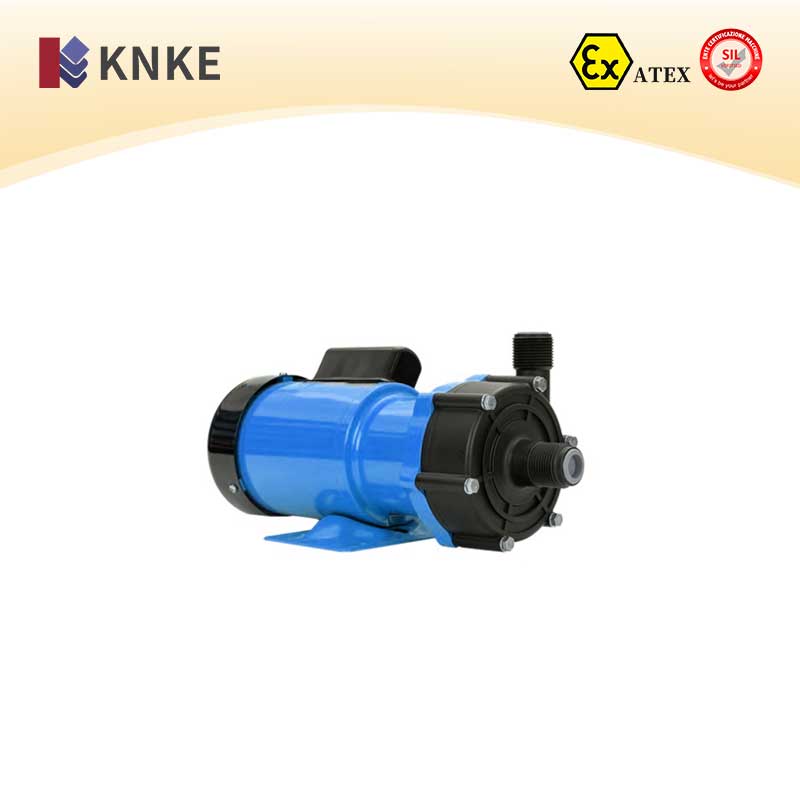

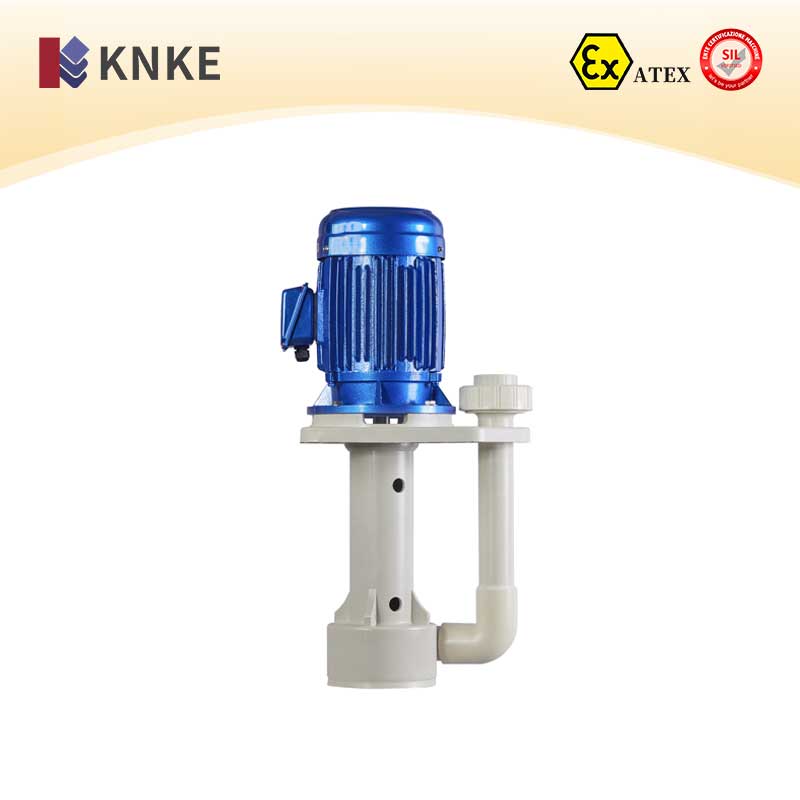

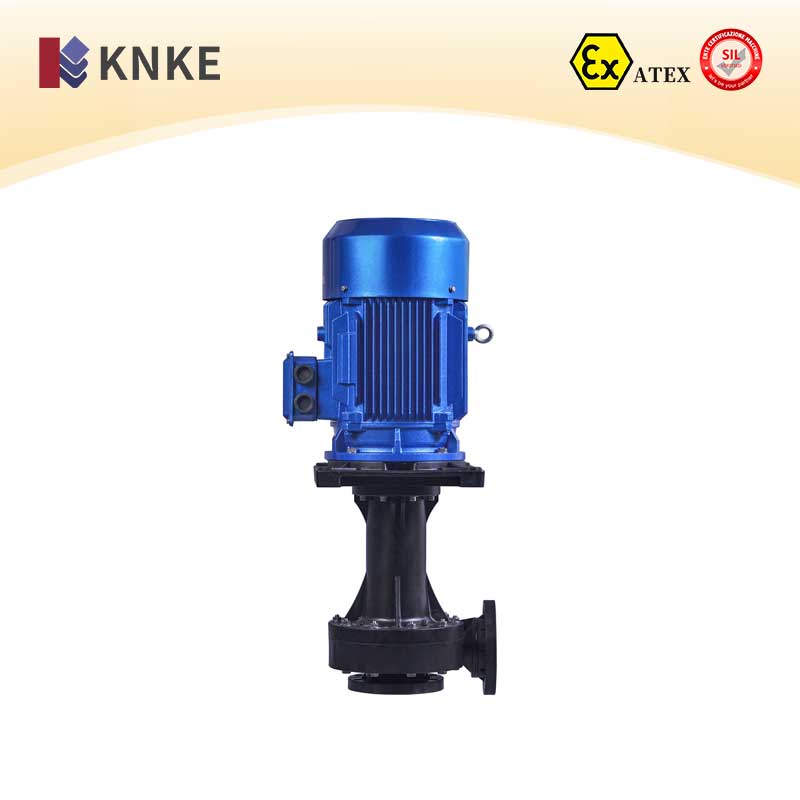

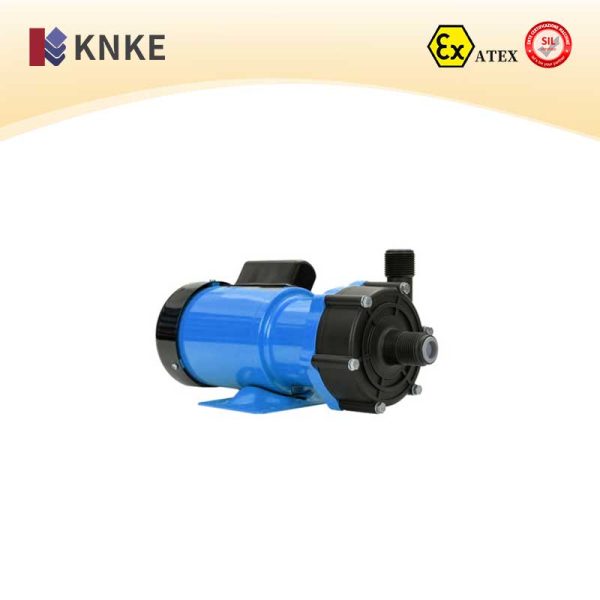

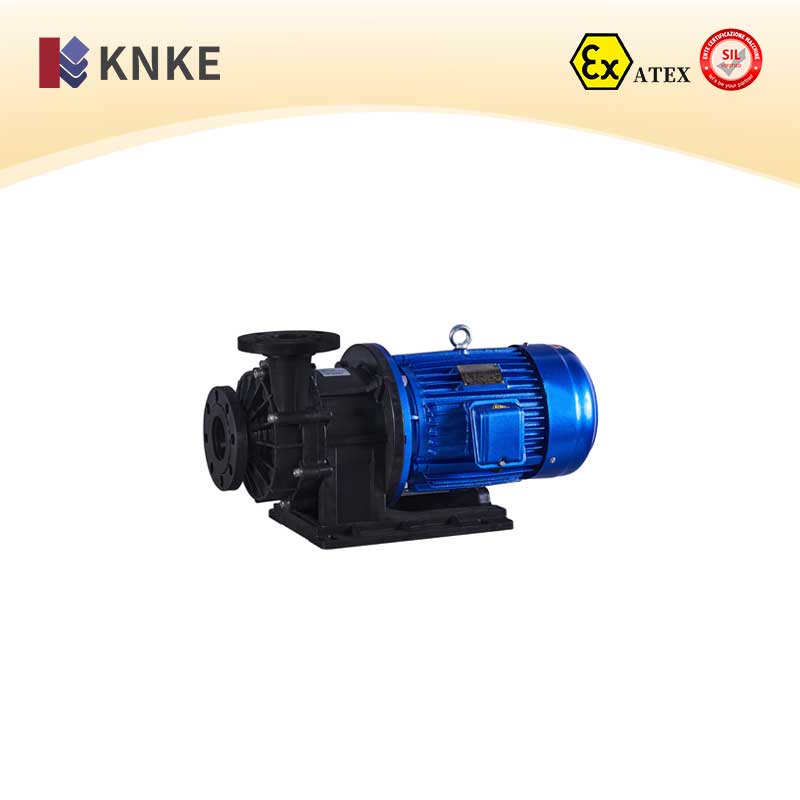

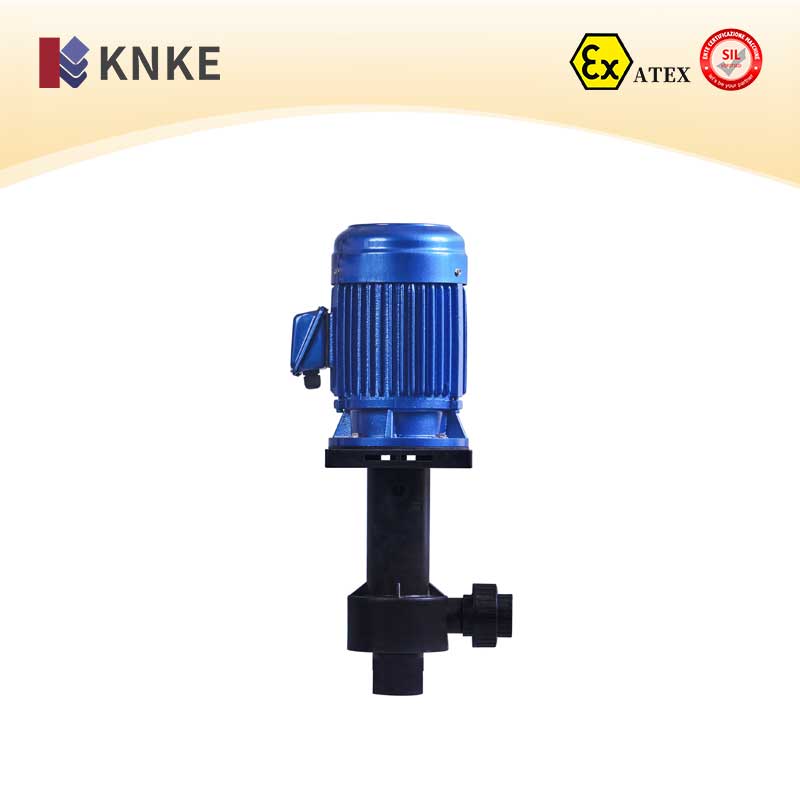

Overview of KNKE Fluoroplastic Pump
KNKE’s Fluoroplastic Pump efficiently transports corrosive media, such as acids and oxidizers, under extreme conditions. It operates at temperatures between -85°C and 200°C, made from high-quality fluoroplastic materials like PTFE and FEP. These materials provide excellent corrosion resistance, high mechanical strength, and durability.
Industries such as chemicals, pharmaceuticals, and food processing rely on this pump to safely transport hazardous chemicals, ensuring no leaks or spills occur. Its compact design and easy maintenance make it an ideal choice for modern, eco-conscious industrial settings.
Key Features of KNKE Fluoroplastic Pump
- Exceptional Corrosion Resistance: Fluoroplastic materials such as PTFE and FEP allow the pump to withstand highly corrosive chemicals, acids, and oxidizers.
- Wide Temperature Range: It works effectively in temperatures ranging from -85°C to 200°C, offering versatility across multiple industries.
- Reliable Mechanical Seal: The pump uses an external, self-adjusting mechanical seal (WB2, 169, MU8), which operates without the need for cooling water. The seal features materials like high-purity aluminum oxide, carbon, and hard carbide to ensure leak-free operation.
- Compact & Durable Design: The robust construction of the pump offers high mechanical strength, ensuring long-term performance even under harsh operating conditions.
- Energy Efficient: Designed with energy efficiency in mind, the pump reduces operating costs and supports sustainable practices.
- Easy Maintenance: Its modular design simplifies maintenance and servicing, reducing downtime and repair costs.
Technical Specifications
| Parameter | Range/Specification |
| Nominal Diameter | 25mm to 300mm |
| Flow Rate | 1.5 to 400 m³/h |
| Head Range | 10 to 80 m |
| Suction Range | 6.5 m |
| Power Range | 2.2 to 132 kW |
| Speed Range | 1450 to 2900 rpm |
| Explosion-Proof Marking | ExdeIIBT4 DIP21 TA T6 |
| Protection Level | IP54/IP65 |
| Rated Voltage | DC24V, 220V, 380V, 660V, 1140V (DC/AC) |
| Temperature Range | -20°C to 120°C |
| Working Pressure | ≤ 1.6 MPa |
| Pump Body Materials | Cast Iron, WCB, 304, 316, 316L |
Materials of Major Parts
| Part | Material |
| Pump Body | Cast Iron, WCB, 304, 316, 316L |
| Impeller | Fluoroplastic Alloy |
| Shaft | Stainless Steel |
| Bearing | High-Quality Material |
| Seal | Tungsten Carbide, Graphite, PTFE |
Applications of KNKE Fluoroplastic Pump
- Industries: Chemicals, Pharmaceuticals, Petrochemicals, Paint, Food Processing, Pulp & Paper, Electroplating
- Applications: The pump is ideal for transporting acids, corrosive chemicals, oxidizers, dyes, and other hazardous substances across industrial processes. It is essential for chemical reactions, pharmaceutical production, and food safety applications.
Performance Characteristics
- Superior Corrosion Resistance: The fluoroplastic materials provide excellent protection against corrosion, ensuring that the pump lasts longer in demanding environments.
- High Mechanical Strength: Its construction ensures the pump handles high pressure and temperature conditions with ease.
- Energy Efficient & Eco-Friendly: This pump is designed to minimize energy consumption, making it a sustainable option for industries aiming to reduce their environmental footprint.
- Leak-Free Operation: Thanks to the advanced sealing system, the pump runs without leakage, protecting the surrounding environment from contamination.
- Durable & Low Maintenance: The pump’s design minimizes the need for frequent maintenance, reducing downtime and repair costs.
Pump Structure
The KNKE Fluoroplastic Pump consists of several high-quality components that ensure its reliable operation:
- Pump Body: The body features metal flanges and fluoroplastic alloy for maximum strength and corrosion resistance.
- Impeller: A high-strength impeller is attached securely to the metal shaft, ensuring optimal torque resistance.
- Mechanical Seal: The pump uses a reliable, self-adjusting, single-end mechanical seal made from durable materials to ensure long-lasting, leak-free performance.
- Frame: The stainless steel frame (1Cr18Ni9Ti) provides stability and durability.
Working Principle
The motor directly drives the impeller, which is securely connected to the motor shaft using a Morse taper. A tightening bolt secures the connection, ensuring the impeller rotates smoothly. The mechanical seal ensures the system runs without leakage, even when handling aggressive, corrosive chemicals.
