Description

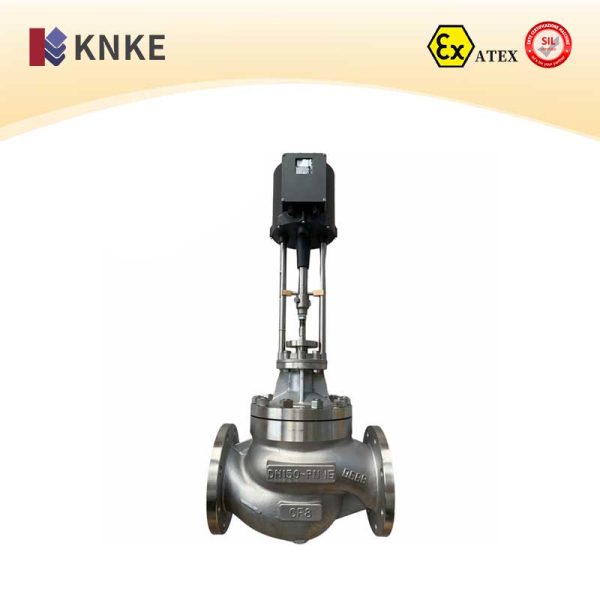

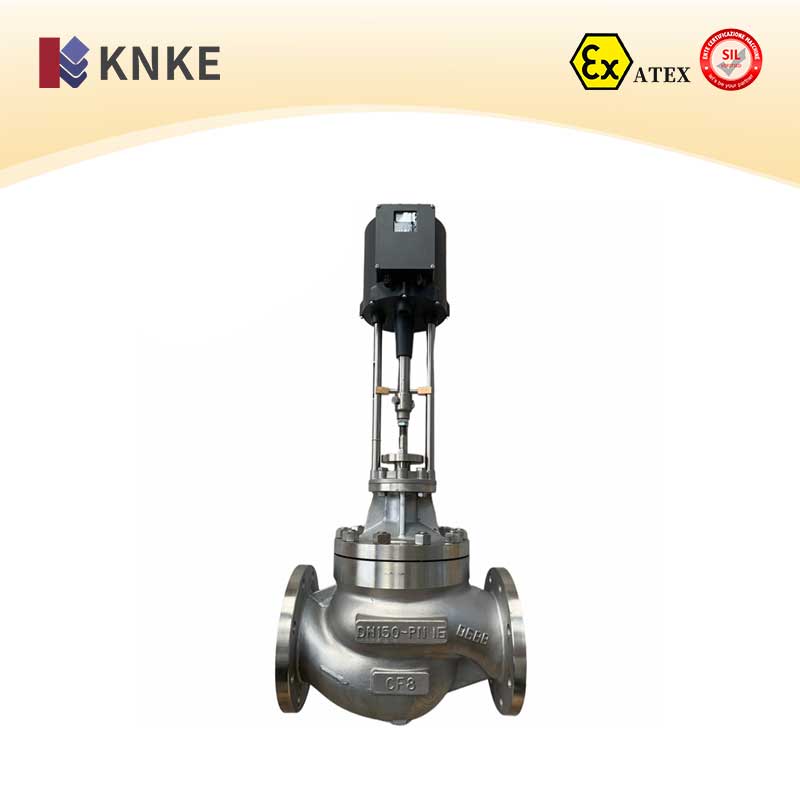

Overview of KNKE Electric Control Valve
The KNKE NCRV Series Electric Control Valve utilizes a sleeve-guided, pressure-balanced valve plug, designed for applications with large pressure differentials. The improved sleeve single-seat design enhances leakage control, while the S-shaped flow passage minimizes pressure drop and offers high flow capacity. This valve is equipped with the 381 series actuator, providing large output force in a compact structure. It is suitable for high-pressure differential, low-temperature, and high-reliability applications in industries such as chemical, gas, power, paper, food, metallurgy, and mining.
Key Features of KNKE Electric Control Valve
- Compact Design: Efficient, small-size actuator with high output force.
- Pressure Balanced Valve Plug: Reduces the required actuator thrust, making it suitable for high-pressure differential applications.
- Improved Leakage Control: Sleeve single-seat design significantly reduces leakage, ensuring reliable performance in demanding conditions.
- Wide Adjustment Range: Capable of handling a wide range of flow rates with minimal pressure loss.
- High Reliability: Suitable for use in industries requiring strict control and high-performance valve characteristics.
- Material Versatility: Broad material selection allows for customization based on specific industry requirements.
Technical Parameters
| Parameter | Specification |
| Nominal Diameter | DN15 to DN600 |
| Pressure Range | 1.6 MPa to 16 MPa |
| Temperature Range | ≤425°C |
| Body Material | Carbon Steel, Stainless Steel 304 |
| Structure Type | Sleeve-Type |
| Operation Mode | Electric |
| Test Pressure | 1.5 times the nominal pressure without leakage |
| Connection Type | Flanged, Butt-Weld |
| Voltage | 220V-380V |
| Mounting Position | Horizontal |
Valve Body Construction
- Type: Sleeve-guided single-seat valve
- Nominal Diameter: DN15 to DN600
- Material: Carbon Steel (A105), Stainless Steel 304
- Design: S-shaped flow passage for minimal pressure drop
- Pressure Range: 1.6MPa to 16MPa
- Connection Types: Flange or Butt Weld
Actuator Information
- Actuator Series: 381 Series Electric Actuator
- Compact & High Force Output: Suitable for high-pressure differential and large flow capacity
- Actuator Voltage: 220V to 380V
- Operating Range: -29°C to +425°C
- Control Type: Electric, for precise flow control in dynamic operating conditions
- Installation Position: Horizontal
- Fail Mode: Fail-safe operation with electric actuation for precise control
Applications of KNKE Electric Control Valve
- Industries: Chemical, Power, Gas, Paper, Food, Metallurgy, Mining
- Applications: Regulating pressure in high-pressure differential, low-temperature, and high-reliability process pipelines.
Performance Characteristics
- High Performance: Optimized for demanding conditions, offering high reliability, efficient flow control, and precise pressure regulation.
- Durability: Constructed with high-quality materials and a robust actuator, ensuring long-lasting operation in harsh environments.
- Flow Control: Wide adjustment range with minimal pressure drop, providing accurate and stable operation across varied flow rates.
