Description

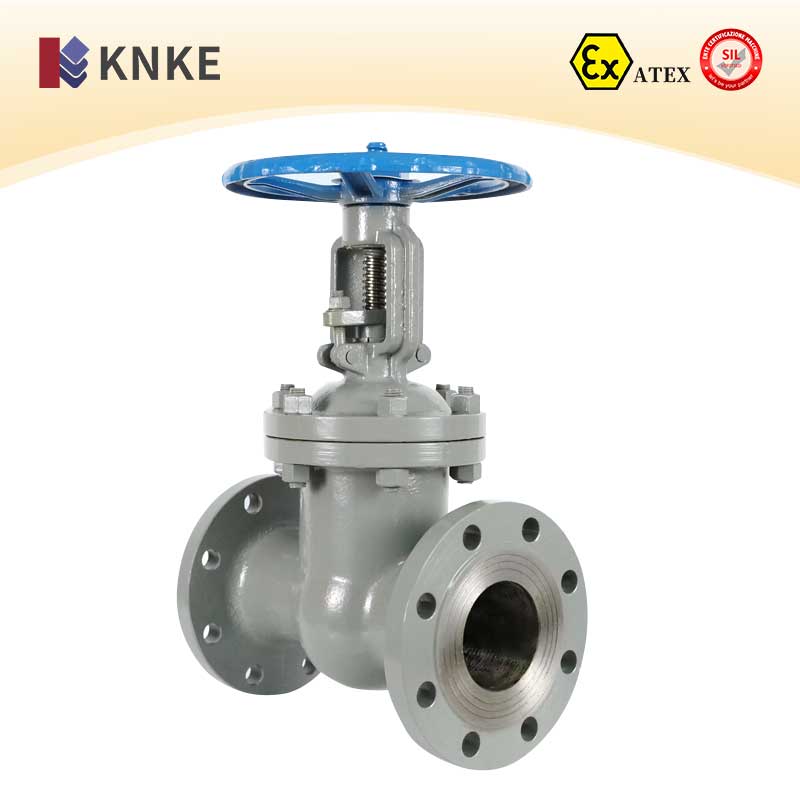

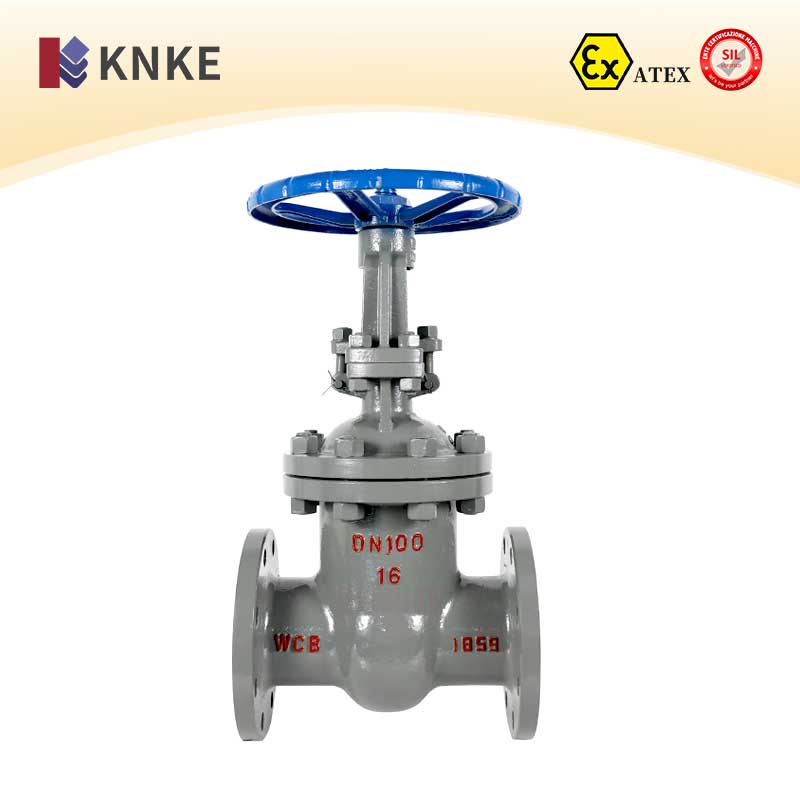

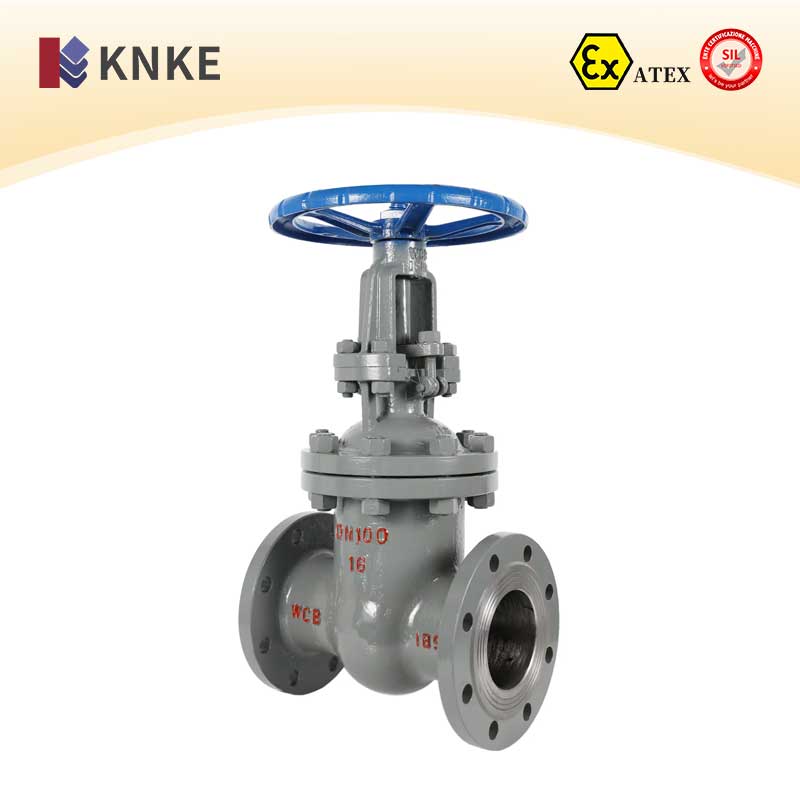

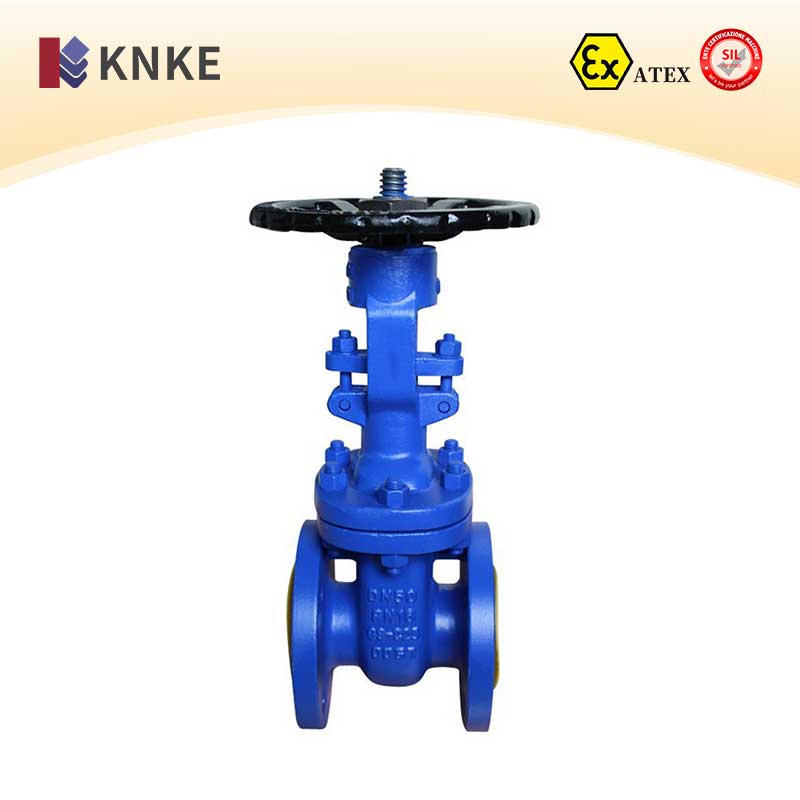

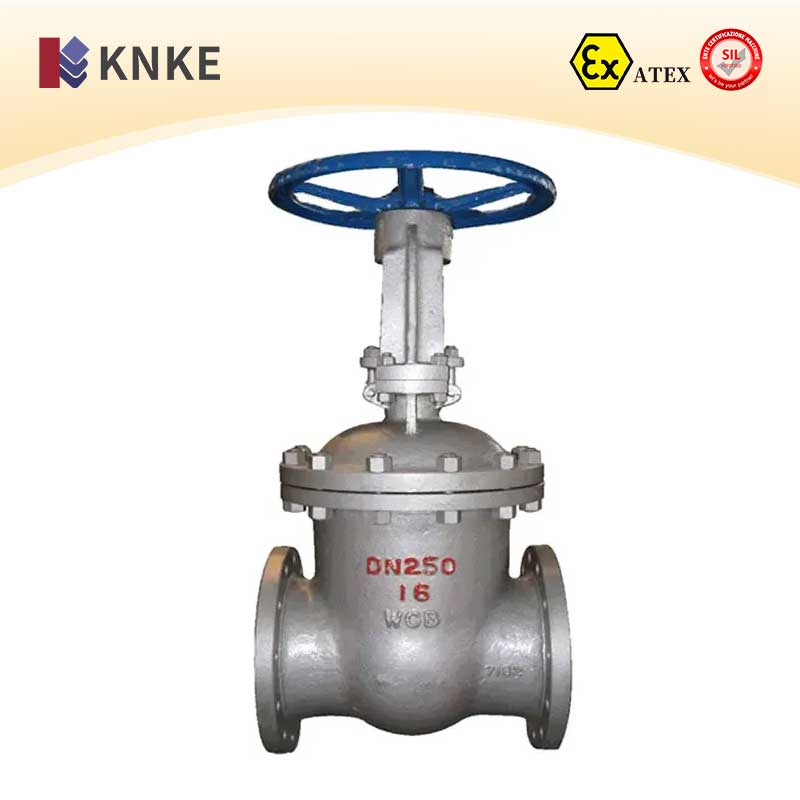

1. USA KNKE Cast Steel Gate Valve Product Overview
The USA KNKE Cast Steel Gate Valve is a high-performance valve crafted from durable cast steel. We manufacture these valves from metal materials, casting them into high-quality components. The materials include grades like WCA, WCB, WCC, and LCB, which are ideal for demanding industrial applications. These valves work well in sectors such as oil, chemical, and power generation. Additionally, the gate valve offers two sealing mechanisms: automatic sealing and forced sealing. High-pressure valves use automatic sealing, while low-pressure valves rely on forced sealing. The valve’s sealing surfaces consist of stainless steel and hard alloys, which ensure excellent durability and provide a reliable seal under harsh conditions.
2. USA KNKE Cast Steel Gate Valve Selection Parameters
| Product Name | Cast Steel Gate Valve |
| Brand Name | USA KNKE |
| Nominal Diameter | DN15～DN1200 |
| Nominal Pressure | 1.6Mpa～25Mpa |
| Applicable Temperature | -20ºC～+150ºC～425ºC～550ºC |
| Body Material | Cast Steel, Carbon Steel (WCA, WCB, WCC, LCB) |
| Applicable Medium | Water, Oil, Gas, Steam, Liquids |
| Structure | Flexible Wedge Single Gate, Rigid Wedge Single Gate, Double Gate |
| Connection | Flange |
| Actuation | Handwheel, Pneumatic, Electric, Hydraulic |
| Standards | GB, DIN, API, ANSI |
3. Key Features of USA KNKE Cast Steel Gate Valve
- Compact and Robust Design: The valve features a compact structure, which ensures excellent rigidity and smooth flow. Therefore, it reduces flow resistance and enhances overall performance.
- Long-lasting Sealing: Stainless steel and hard alloys are used for the sealing surface. As a result, the valve offers a long lifespan compared to standard materials.
- Reliable Sealing Performance: The valve uses flexible graphite packing for a tight seal. This ensures smooth operation, even under demanding conditions.
- Versatile Actuation Options: You can choose between handwheel, pneumatic, electric, or hydraulic actuation. This variety makes the valve suitable for a wide range of industrial applications.
- Multiple Structure Types: The valve is available in several configurations, such as flexible wedge single gate, rigid wedge single gate, and double gate. This flexibility ensures the valve suits various operational needs.
4. USA KNKE Cast Steel Gate Valve Standards
- Design Standard: GB/T 12234
- Structure Length: GB/T 12221
- Flange Connection: JB/T 79.1
- Testing and Inspection: JB/T 9092
- Pressure-Temperature Rating: GB/T 9131
- Product Marking: GB/T 12220
5. Performance Parameters of USA KNKE Cast Steel Gate Valve
| Nominal Pressure PN (MPa) | Shell Test Pressure (MPa) | Upper Seal Sealing (Liquid) | Sealing (Gas) |
| 1.6 | 2.4 | 1.8 | 0.6 |
| 2.5 | 3.8 | 2.8 | 0.6 |
| 4 | 6 | 4.4 | 0.6 |
| 6.4 | 9.6 | 7 | 0.6 |
| 10 | 15 | 11 | 0.6 |
| 16 | 24 | 18 | 0.6 |
6. Applicable Medium and Temperature Range
| Body Material | Applicable Medium | Applicable Temperature (℃) |
| Carbon Steel (C Type) | Water, Steam, Oil | ≤425 |
| Chromium Nickel Titanium Steel (P Type) | Nitric Acid | ≤200 |
| Chromium Nickel Molybdenum Titanium Steel (R Type) | Acetic Acid | ≤200 |
| Chromium Molybdenum Steel (I Type) | Water, Steam, Oil | ≤550 |
7. Key Components Material of USA KNKE Cast Steel Gate Valve
| Component Name | Material |
| Body, Bonnet | Carbon Steel, Chromium Nickel Titanium Steel, Chromium Nickel Molybdenum Titanium Steel, Chromium Molybdenum Steel |
| Gate, Seat | Stainless Steel + Hard Alloys, Stainless Steel |
| Stem | Chromium Stainless Steel, Chromium Nickel Titanium Stainless Steel |
| Stem Nut | Aluminum Bronze |
| Packing | Graphite Asbestos Packing, PTFE |
| Handwheel | Ductile Cast Iron |
8. Product Applications
USA KNKE Cast Steel Gate Valves are used across various industries. Some common applications include:
- Petrochemical Industry: These valves control the flow of oil, gas, and other fluids in pipelines.
- Thermal Power Plants: They help regulate steam flow in power generation processes.
- Oil and Gas: The valves handle high-pressure, high-temperature conditions, making them ideal for the oil and gas sector.
- Chemical Processing: They work in systems dealing with corrosive liquids and gases, ensuring reliable and long-lasting performance.
