Working Principles of Concentration Meters: Optical, Electrochemical, Ultrasonic Tech Explained

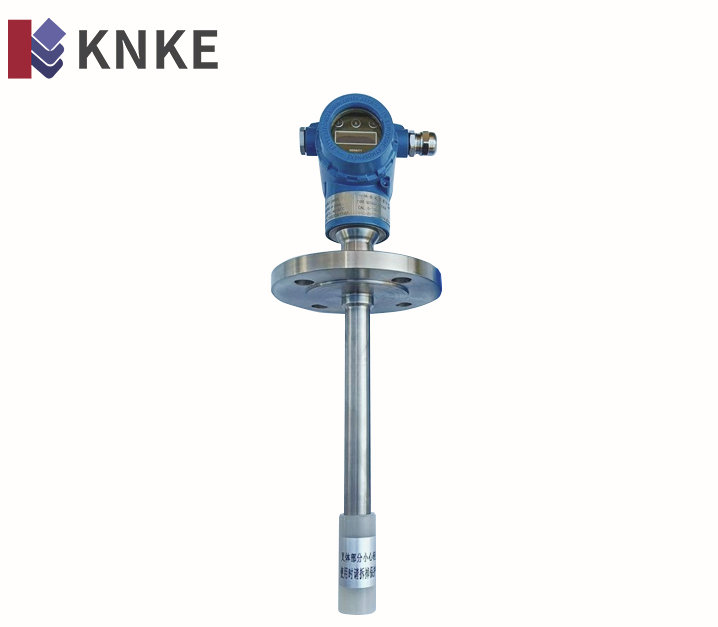

Accurate measurement of solution concentration is critical in industries like manufacturing, environmental monitoring, and food & pharmaceuticals to ensure process control and quality standards. Concentration meters employ diverse physical and chemical principles to derive concentration values. This article dissects the core working mechanisms of concentration meters based on optical, electrochemical, ultrasonic, and other innovative principles.

1. Optical Principles: Quantitative Correlation Between Light Signals and Concentration

Core Technical Mechanism

Optical concentration meters establish mathematical models between light signal changes and concentration by analyzing light absorption, refraction, or scattering properties of solutes in solutions. This is one of the most widely used technologies in laboratories and industrial settings.

1.1 Absorbance Method: Precise Measurement Based on Lambert-Beer Law

• Principle: When monochromatic light passes through a solution, solute molecules absorb light energy. Absorbance (A) follows the Lambert-Beer Law: A = εcL, where ε is the molar absorptivity, c is concentration, and L is light path length.
• Technical Implementation: Monochromators select specific wavelengths; photodetectors measure light intensity attenuation, with built-in algorithms converting signals to concentration values.
• Typical Applications:
  • Water quality monitoring: Heavy metal ions, COD (chemical oxygen demand) detection
  • Food industry: Coffee concentration meters (measuring soluble solids in brews)
  • Pharmaceutical field: Purity analysis of injection active ingredients

1.2 Refractometry: Concentration Mapping via Refractive Index

• Principle: The refractive index (n) of a solution increases with solute concentration. Concentration is derived by measuring the critical refraction angle at the gas-liquid interface.
• Technical Advantages: No chemical reaction needed; ideal for rapid testing of transparent liquids like syrups, wines, and cutting fluids.
• Representative Instruments: Handheld refractometers (on-site food processing detection), online refractive concentration meters (real-time beverage production monitoring).

2. Electrochemical Principles: Decoding Concentration from Ion Migration and Electrical Signals

Core Technical Logic

Based on the linear relationship between electrochemical properties (conductivity, electrode potential) and ion concentration, these meters measure electrical signals to determine concentration, especially suitable for electrolyte solutions like acids, bases, and salts.

2.1 Conductivity Method: From Conductance to Ion Concentration

• Principle: Solution conductivity (κ) correlates positively with ion concentration. Alternating voltage is applied across two electrodes, and loop current is measured to calculate conductivity, which is then converted to concentration with corrections for temperature and ion activity.
• Technical Branches:
  • Electrode Type: Platinum black electrodes for clean liquids (e.g., boiler water, electroplating baths).
  • Electromagnetic Induction Type (e.g., CM442 concentrator): Non-contact design using excitation coils to generate alternating magnetic fields, inducing eddy currents in solutions to avoid electrode contamination—ideal for corrosive media like sulfuric acid and sodium hydroxide.
• Applications: Industrial wastewater treatment online monitoring, chemical reactor material concentration control.

2.2 Potentiometry: Selective Ion Measurement via Nernst Equation

• Principle: Ion-selective electrodes (e.g., pH glass electrodes, fluoride electrodes) generate potentials (E) following the Nernst Equation: E = E° + (RT/nF)lnα, where α is ion activity. Concentration is derived by forming a galvanic cell with a reference electrode.
• Typical Use Cases: Laboratory acid-base titration, soil electrolyte ion composition analysis.

3. Ultrasonic Principles: Mapping Suspended Solids Concentration via Mechanical Wave Attenuation

Core Technical Framework

Using ultrasonic propagation characteristics in solid-liquid mixtures, these meters infer suspended solids concentration from signal attenuation—key technology for wastewater treatment monitoring.

3.1 Working Mechanism

• A transmitter generates high-frequency ultrasound (500kHz-2MHz). As sound waves pass through solutions with suspended solids, particles scatter and absorb energy, reducing receiver signal strength.
• Attenuation (dB) correlates non-linearly with suspended solids concentration (e.g., MLSS sludge concentration, SS suspended solids), requiring on-site calibration to build fitting curves.

3.2 Technical Features

• Non-Contact Measurement: Pollution-resistant sensor surfaces suitable for high-turbidity, corrosive media (e.g., aeration tank sludge).
• Calibration Challenges: No unified international standards; relies on built-in calibration programs and operational condition data fitting (as mentioned in Baidu Encyclopedia for sensor-converter parameter presets).

3.3 Application Cases

• MLSS concentration monitoring in wastewater treatment secondary clarifiers to guide sludge recycling;
• Paper mill pulp suspended solids detection to optimize papermaking processes.

4. Innovative Principles: Diverse Technologies for Specialized Scenarios

4.1 Mass Spectrometry: Molecular-Level High-Precision Analysis

• Principle: Solution molecules are ionized via electron bombardment or electrospray, then separated by mass analyzers based on mass-to-charge ratio (m/z). Concentration is quantified by characteristic ion peak intensity, achieving detection limits as low as ppb.
• Advantages: Multi-component analysis for complex systems (e.g., biological samples, trace pollutants), though expensive and complex—primarily for research labs.

4.2 Gravimetric Method: Direct Density-Concentration Correlation

• Principle: Solution density (ρ) changes with concentration. Vibrating density meters (e.g., U-tube oscillation) measure resonance frequency to calculate density, which is then converted to concentration via lookup tables (e.g., syrup, lubricant testing).
• Features: No chemical pretreatment needed for high-viscosity, opaque liquids, but requires real-time temperature compensation.

5. Selection Guide: Four Key Dimensions for Practical Needs

The working principles of concentration meters essentially convert material properties into measurable physical signals, with each technology offering unique advantages: optical methods for versatility, electrochemical for electrolytes, ultrasonic for solid-liquid mixtures, and mass spectrometry for trace analysis. When selecting a meter, consider medium characteristics (transparent/turbid, ionic/molecular), precision requirements, and operational environment (corrosive, online/offline).

With the development of IoT and smart sensing, concentration meters are evolving toward multi-principle integration, real-time online calibration, and cloud-connected data management, providing core technical support for precise measurement in the Industry 4.0 era.
