The Role of Control Valves in Industrial Automation: Functions, Types & Applications
In the complex processes of industrial production, precise control of fluid parameters such as flow rate, pressure, and temperature is crucial to ensuring safety, stability, and efficiency. As the “nerve endings” of industrial automation systems, control valves serve as the core function to translate control commands into physical actions. By accurately regulating the flow state of media, they provide fundamental support for automation control in numerous fields, including petrochemicals, power energy, and biomedicine.
1. Core Functions: The Core Carrier for Multi-Dimensional Parameter Control
(1) Precise Flow Regulation
The fundamental function of control valves is to achieve precise control of fluid flow by changing the flow area between the valve core and seat. For example, in chemical reaction kettles, control valves can adjust the feed rate of raw materials within a ±1% error margin according to real-time process requirements, ensuring chemical reactions proceed at preset ratios. This precise control avoids raw material waste and prevents risks of reaction runaway caused by flow fluctuations.
(2) Pressure Stabilization Mechanism
In pressure control systems, control valves play a dual role as “safety valves” and “pressure regulators.” Pressure reducing valves use throttling principles to reduce high-pressure fluids to stable process pressures, such as lowering the 10MPa high pressure in natural gas pipelines to 0.3MPa for civil use. Safety valves, on the other hand, automatically open when system pressure exceeds critical values—for instance, safety valves in steam boilers quickly discharge steam when pressure exceeds limits, preventing equipment explosions. Data shows that reasonable configuration of pressure control valves can reduce industrial pipeline leakage accidents by over 60%.
(3) Dynamic Temperature Regulation
In heat exchange systems, control valves achieve precise temperature control by regulating the flow of heating media (such as steam) or cooling media (such as water). For example, in sterilization cabinets of the pharmaceutical industry, control valves work with temperature sensors to stabilize the internal temperature within ±0.5°C, ensuring consistent sterilization effects for medications. This dynamic regulation capability serves as the core technical support for precision temperature control systems.
2. Application Scenarios: The Control Foundation Across Industrial Sectors
(1) The Core Hub of Process Industries
In the petrochemical sector, control valves are widely used in key units such as atmospheric and vacuum distillation and catalytic cracking, controlling the flow of various components in crude oil distillation and the pressure in tower kettles. In the power industry, steam inlet control valves for steam turbines directly impact power generation efficiency—high-precision valves can increase unit thermal efficiency by 3%-5%. Statistics show that a large-scale oil refining unit requires over 2,000 control valves of various types, whose operational status directly determines the economic viability of the entire production line.
(2) The Invisible Guardians of Civil Sectors
In central air conditioning systems, differential pressure control valves maintain stable pressure in chilled water to ensure uniform cooling in all terminal coils, keeping building temperature fluctuations within 2°C. In urban water supply systems, pressure control valves maintain pipeline pressure within a safe range of 0.3-0.6MPa, ensuring water supply to high-rise households while preventing pipeline explosions. Although these applications are not directly visible, they effectively guarantee the comfort and safety of daily life.
(3) Customized Requirements for Special Working Conditions
In special fields such as nuclear power and aerospace, control valves must meet control requirements in extreme environments. For example, high-temperature and high-pressure control valves in nuclear reactors must operate flawlessly for 10,000 cycles under conditions of 250°C and 15MPa, with sealing performance and corrosion resistance meeting military-grade standards. The development of such customized control valves often represents the highest level of fluid control technology.
3. Type Analysis: Diverse Needs Give Rise to a Rich Product Line
(1) Self-Actuating Control Valves: A Model of Passive Control
These valves require no external energy and are driven by changes in the medium’s own pressure or temperature, exemplified by self-actuating pressure control valves. When pipeline pressure exceeds the set value, the medium pressure pushes the diaphragm to drive the valve core to close slightly, achieving pressure stabilization without an electrical control system. This makes them particularly suitable for remote areas or explosion-proof environments, such as pressure control in oilfield gathering pipelines.

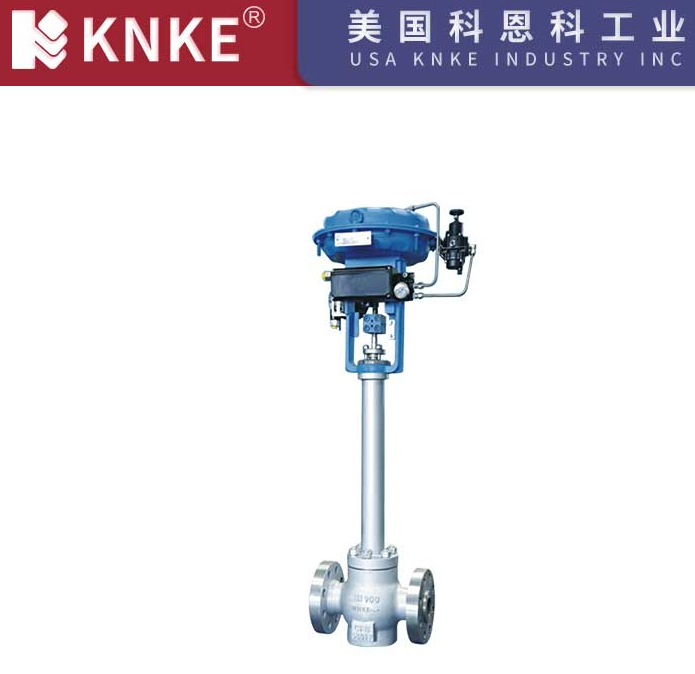

(2) Pneumatic Control Valves: The Mainstream Choice for Industrial Automation
Powered by compressed air, these valves receive 4-20mA electrical signals or 20-100kPa pneumatic signals and drive the valve core through diaphragm or piston actuators. With fast response speeds (action time <1 second) and high control accuracy, they occupy over 70% of the market share in the petrochemical industry. The air-to-open/air-to-close design meets different safety requirements—for example, air-to-open valves that automatically close in case of failure are suitable for cutting off flammable and explosive media.
(3) Smart Control Valves: Pioneers of Digital Transformation
Smart control valves integrated with microprocessors and sensors feature self-diagnosis and adaptive adjustment functions. Through built-in PID algorithms, they can optimize control parameters in real time—for instance, automatically adjusting valve characteristic curves during flow fluctuations to improve control accuracy by 30%. Some high-end products support communication protocols such as HART and Profibus, becoming intelligent nodes in industrial internet systems for remote monitoring and predictive maintenance.
4. Working Principle: Precise Conversion from Signal to Action
The control process of a control valve is essentially a closed-loop system of “signal-energy conversion”: The control system (such as DCS/PLC) calculates the required valve opening based on real-time parameters feedback from sensors and outputs control signals. The actuator (pneumatic/electric/hydraulic) converts electrical signals into mechanical displacement to drive the valve core. The valve body regulates medium parameters by changing the flow channel cross-sectional area, forming a complete closed loop of “detection-control-execution-feedback.” The time constant of this process is typically less than 0.5 seconds, ensuring rapid system response.
5. Technological Development: Dual-Driven by Intelligence and Greenization
With the advancement of Industry 4.0, control valves are evolving toward intelligence and energy efficiency. The application of digital twin technology allows engineers to simulate valve operating conditions in a virtual environment and predict faults such as jamming or leakage in advance. The progress of ceramic sealing and coating technologies has extended the service life of control valves to over 10 years. Meanwhile, low-flow resistance designs can reduce pipeline system energy consumption by 15%-20%, aligning with the global trend of green manufacturing.
Although control valves may seem like “small components” in industrial systems, they carry the “great function” of process control. From basic flow regulation to complex intelligent control, and from traditional industries to emerging fields, they remain a key link connecting automation systems with the physical world. With continuous technological innovation, control valves will continue to break through in higher precision, harsher working conditions, and smarter control, injecting new momentum into the efficient, safe, and green development of global industries. In the foreseeable future, this “heart of industrial control” will continue to beat in every link of automated production, witnessing the magnificent transformation of manufacturing toward the intelligent era.
