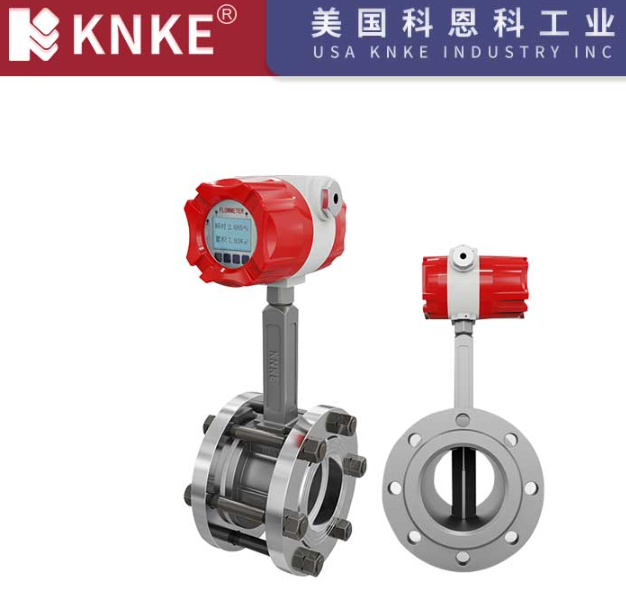

The Advantages of Vortex Flowmeters
Vortex flowmeters have gained widespread recognition in the field of industrial measurement due to their simplicity, durability, and impressive performance characteristics. This article explores the key advantages of vortex flowmeters and highlights why they are a preferred choice for various applications.
1. Simple and Robust Structure
Vortex flowmeters boast a straightforward design that ensures ease of installation and maintenance. Unlike other types of flowmeters, they eliminate the need for auxiliary components such as impulse lines and three-valve manifolds. This simplicity minimizes potential issues like leaks, blockages, and freezing, making them highly reliable even in challenging environments.
2. High Accuracy
Accuracy is a crucial factor in flow measurement, and vortex flowmeters excel in this area. They typically offer an accuracy level of ±(1–1.5)% of the reading (R), ensuring precise and dependable measurements across various industrial applications.
3. Wide Measurement Range
One of the standout features of vortex flowmeters is their extensive measurement range. By selecting the appropriate diameter, users can achieve a turndown ratio as high as 20:1. This capability makes them suitable for processes with fluctuating flow rates, providing versatility and adaptability.
4. Low Pressure Loss
Vortex flowmeters are designed to operate efficiently with minimal pressure drop. Their pressure loss is approximately one-quarter to half that of traditional differential pressure flowmeters. This efficiency reduces energy consumption and operating costs, making them a cost-effective solution.
5. Pulse Output Proportional to Flow Rate
Vortex flowmeters generate a pulse signal that is directly proportional to the flow rate, offering an intuitive and straightforward means of data output. Furthermore, they are free from zero-point drift, ensuring consistent performance over time.
6. Independence from Fluid Properties
In specific Reynolds number ranges, the output frequency of a vortex flowmeter remains unaffected by the fluid’s physical properties, such as density and viscosity, or its composition. This unique feature means that the instrument coefficient depends solely on the shape and dimensions of the vortex generator and the pipe, enhancing its reliability and versatility.
Vortex flowmeters stand out as a reliable, accurate, and versatile option for flow measurement in industrial applications. Their simple design, high accuracy, wide range, low pressure loss, and independence from fluid properties make them an ideal choice for various industries. As technology advances, vortex flowmeters continue to play a critical role in optimizing industrial processes, delivering both performance and cost-efficiency.
