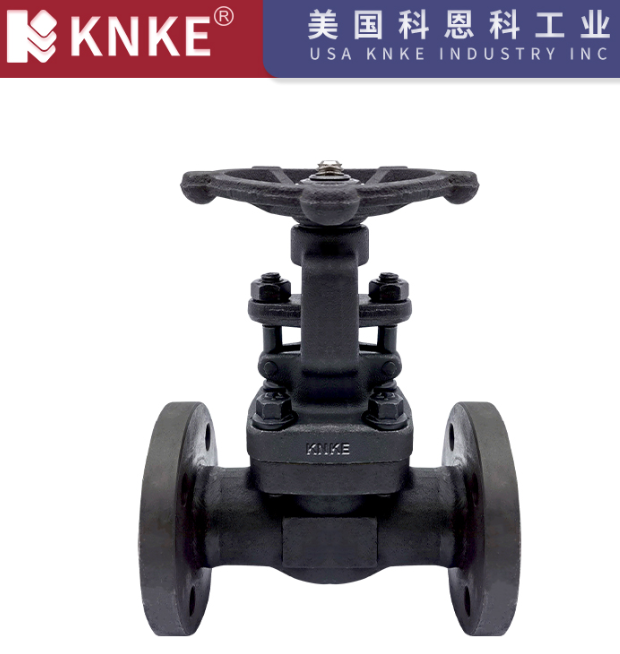

Installation and Usage Guide for Forged Steel Flanged Gate Valve

The forged steel flanged gate valve is a crucial shut-off device widely used in industrial applications. Its opening and closing component is the gate, which moves perpendicularly to the direction of fluid flow to achieve flow cut-off. Due to its design characteristics, the forged steel flanged gate valve is only suitable for fully open or fully closed operation and cannot be used for flow regulation or throttling. This article aims to systematically describe the installation and usage methods of the forged steel flanged gate valve to help users achieve optimal operation and maintenance.

Pre-installation Inspection and Preparation

Before installing the forged steel flanged gate valve, a comprehensive inspection of the valve cavity, sealing surfaces, and related components is essential to ensure there are no impurities or sand particles attached, as these could affect the valve’s normal functioning. Additionally, all connecting bolts must be checked to ensure they are evenly tightened to guarantee connection stability and sealing performance.

Inspection of the packing area is also crucial. The packing should be properly compressed to ensure both sealing effectiveness and flexibility of the gate during opening and closing. Excessive compression may lead to excessive operational resistance, while insufficient compression may result in leakage.

Installation Steps

1. Verify Valve InformationBefore installation, users should carefully verify the valve model, connection dimensions, and flow direction to ensure consistency with the design requirements of the pipeline system. This step is essential to avoid operational failures due to discrepancies between the valve and system parameters.
2. Reserve Operating SpaceDuring the installation of the forged steel flanged gate valve, sufficient space must be reserved for the valve actuator to ensure convenient operation and maintenance during subsequent use.
3. Wiring of ActuatorIf the valve is equipped with an actuator, wiring must be performed according to the provided circuit diagram to ensure operational safety and control accuracy. Special attention should be paid to the correctness of each terminal during wiring to prevent equipment damage or safety incidents due to wiring errors.
4. Evenly Tighten BoltsDuring installation, the bolts at the flange connection should be evenly tightened to avoid poor sealing or loosening caused by uneven force. Uneven force may lead to local sealing failure, thereby affecting the overall stability of the system.

Operation and Maintenance

Proper operation and regular maintenance of the forged steel flanged gate valve are essential for its long-term reliable performance. During use, the valve should be protected from any form of impact or compression to prevent adverse effects on its sealing performance. Additionally, it is recommended that users develop a regular maintenance plan to conduct comprehensive inspections of the sealing surfaces, packing areas, and other critical components, allowing for timely identification and resolution of any potential leakage or loosening issues.

The forged steel flanged gate valve plays an important role as a shut-off device in many industrial systems, and its reliability depends on proper installation, usage, and regular maintenance. By strictly following the above installation and usage guidelines, users can not only extend the service life of the valve but also ensure the operational safety and stability of the entire system.
