Gate Valves Explained: A Complete Guide to Principle, Types, Selection, and Applications

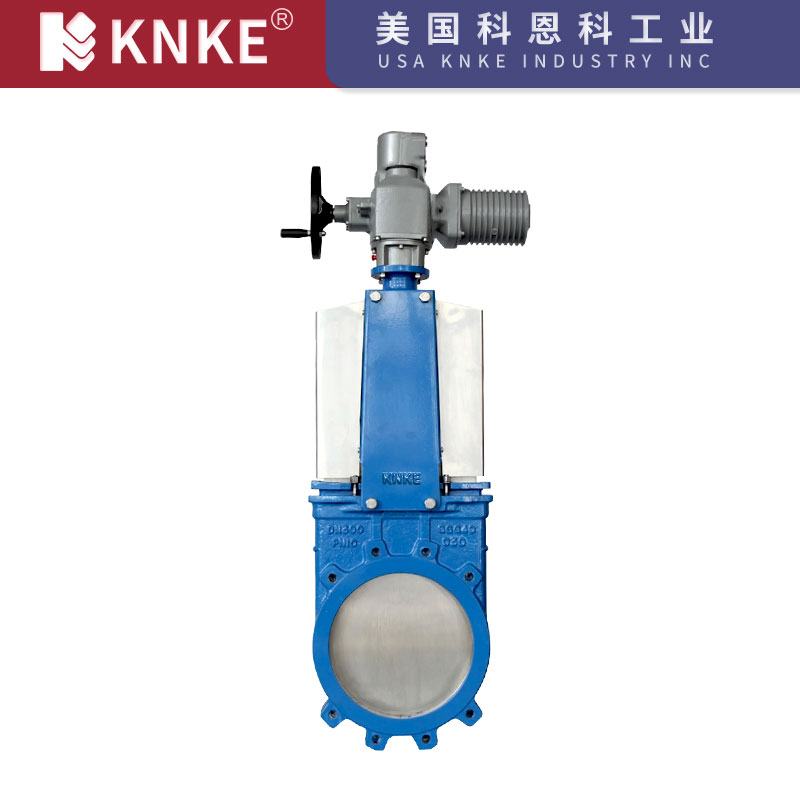

A Gate Valve is one of the most common and widely used valve types in industrial piping systems. It is a linear motion valve whose primary function is to serve as an isolation (or “cut-off”) valve, designed to either fully start or completely stop the flow of a medium. Its name comes from its core component, the “gate” (or disc), which moves perpendicular to the direction of flow.

The defining characteristic of a gate valve is that when fully open, the gate is completely lifted out of the flow path. This creates a straight-through, unobstructed channel, resulting in very low flow resistance. This makes gate valves ideal for systems that require minimal pressure drop and are not operated frequently.

How Gate Valves Work

The working principle of a gate valve is straightforward. An actuator (such as a handwheel or electric motor) turns the valve stem. The threads on the stem engage with the gate, causing it to move up or down.

• Opening Process: As the handwheel is turned (typically counter-clockwise), the stem rises, lifting the gate. When the gate is fully lifted clear of the valve seats, the flow path is completely open.
• Closing Process: Turning the handwheel in the opposite direction lowers the stem and the gate. When the gate’s sealing surface comes into firm contact with the valve seats, it forms a tight seal, cutting off the flow of the medium.

It is critical to note that gate valves should not be used for regulating flow (throttling). When the gate is in a partially open position, the high-velocity fluid will strike the gate and seat surfaces. This causes rapid erosion and damage to the sealing surfaces, which will compromise the valve’s ability to provide a tight shut-off when fully closed.

Main Types and Classifications of Gate Valves

Gate valves are categorized into several types to suit different service conditions and requirements. Understanding these classifications is essential for proper selection.

1. By Stem Design

This is the most common classification, directly impacting installation space and operational indication.

• Rising Stem (OS&Y) Gate Valve:
  • Features: The stem rises and lowers along with the handwheel as the valve is operated. When the valve is open, the stem is visibly extended outside the valve body.
  • Pros: The stem’s position provides a clear visual indication of whether the valve is open or closed. The stem threads are outside the valve body, protecting them from corrosion by the process medium.
  • Cons: Requires significant vertical space to accommodate the rising stem.
• Non-Rising Stem (NRS) Gate Valve:
  • Features: The stem only rotates, while the gate moves up and down inside the valve body. The overall height of the valve does not change.
  • Pros: Compact design is ideal for applications with limited vertical space, such as underground pipelines or in pits.
  • Cons: It is not possible to visually determine the valve’s open/closed status from a distance. The stem threads are internal and exposed to the process medium, making them more susceptible to corrosion.

2. By Gate (Disc) Design

• Wedge Gate Valve: This is the most widely used design, featuring a wedge-shaped disc.
  • Solid Wedge: A simple, single-piece wedge. It is strong and robust.
  • Flexible Wedge: The disc has a slot or cut around its perimeter, allowing it to flex slightly. This flexibility helps compensate for minor misalignments in the seat and prevents binding due to thermal expansion.
• Parallel Gate Valve: This design uses two parallel discs that are forced apart (either by medium pressure or a mechanical spreader) to seal against the parallel seats.

3. By Connection Type

• Flanged Gate Valve: The most common connection, using flanges and bolts for easy installation and removal.
• Threaded Gate Valve (Screwed): Typically used for smaller diameter pipes (e.g., DN50 / 2″ and below).
• Welded Gate Valve: Provides a high-integrity, leak-proof connection, often used in high-pressure, high-temperature, or critical applications.

Advantages and Disadvantages of Gate Valves

Understanding the pros and cons of a gate valve is crucial for making the right engineering choice.

Advantages:

1. Low Flow Resistance: When fully open, the straight-through path offers minimal obstruction, making it the lowest-resistance valve type.
2. Good Sealing Performance: Can achieve a tight shut-off in the fully closed position.
3. Low Operating Torque: Compared to a globe valve, it requires less force to open or close, as the gate moves perpendicularly to the flow.
4. Bidirectional: In most designs, the flow can go in either direction without affecting performance.
5. Wide Range of Applications: Suitable for various media, including water, steam, oil, and gas, and can be designed for high pressures and temperatures.

Disadvantages:

1. Slow Operation: The large travel of the gate means it requires many turns of the handwheel to go from fully open to fully closed.
2. Not Suitable for Throttling: As mentioned, use in a partially open state leads to severe erosion and shortens the valve’s life.
3. Large Physical Size: Gate valves, especially the rising stem (OS&Y) type, are tall and require significant installation space.
4. Difficult Maintenance: Repairing or re-surfacing worn seats in-line is complex and often requires removing the valve from the pipeline.

Key Selection Criteria and Applications

Gate Valve Selection Criteria

Choosing the correct gate valve is essential for system reliability. Key factors to consider include:

1. Nominal Diameter (DN) and Pressure (PN/Class): Must match the pipeline specifications.
2. Medium Characteristics: The fluid’s temperature, corrosivity, and whether it contains solid particles. This determines the required valve materials (e.g., Cast Iron, Carbon Steel, Stainless Steel 304/316, Alloy Steel).
3. Body and Seal Materials: Selection between metal-to-metal (hard seal) or resilient (soft seal, e.g., EPDM, NBR) seats based on the medium and temperature.
4. Connection Type: Flanged, threaded, or welded, based on pipeline standards and service requirements.
5. Operation Method: Manual (handwheel), electric, pneumatic, or hydraulic, depending on automation needs and site access.
6. Stem Type: Rising Stem (OS&Y) for visual indication or Non-Rising Stem (NRS) for space-constrained applications.

Typical Application Fields

Thanks to their low flow resistance and reliable shut-off, gate valves are widely used in:

• Water and Wastewater: Main isolation valves in water supply networks, pumping stations, and treatment plants.
• Oil and Gas: Upstream (wellheads), midstream (pipelines), and downstream (refineries) for isolating the flow of crude oil, natural gas, and refined products.
• Chemical Industry: Used for on-off control of various process fluids, especially those without solid particles.
• Power Generation: In fossil fuel and nuclear power plants for steam lines, cooling water systems, and auxiliary services.
• Mining and Metallurgy: On pipelines transporting water, process fluids, or non-abrasive slurries.

Conclusion
