Differences Between Pneumatic Control Valves and Stainless Steel Ball Valves
In the field of industrial fluid control, stainless steel ball valves and pneumatic control valves are among the most common devices, each with distinct differences in functionality and application scope. While they may appear to serve similar functions in fluid control, there are fundamental differences in their structural design, control methods, and application environments. Understanding these differences is crucial for optimizing industrial control strategies and improving process efficiency.
Characteristics and Applications of Stainless Steel Ball Valves
A stainless steel ball valve is a control device that opens and closes fluid channels by rotating a ball. Its main features include a simple structure, excellent sealing performance, and convenient operation. Due to its outstanding durability and reliability, the stainless steel ball valve is widely used in various industries, including natural gas, petroleum, chemical, metallurgy, paper, power, and mining, primarily for on-off control of fluid in pipeline systems or as a rough flow regulation device.
Stainless steel ball valves can be operated manually, pneumatically, or electrically, and the valve body structure can be cast, forged, or fully welded based on actual working conditions. Among these, the fully welded structure is particularly suitable for underground applications due to its superior corrosion resistance and strength.
One of the critical components of this valve is the pneumatic actuator. Common actuators, such as the GT series, can be selected in either double-acting or single-acting configurations depending on working conditions, providing reliable torque output. This structure allows stainless steel ball valves to achieve stable and efficient operation in industrial systems requiring automation.
Characteristics and Applications of Pneumatic Control Valves

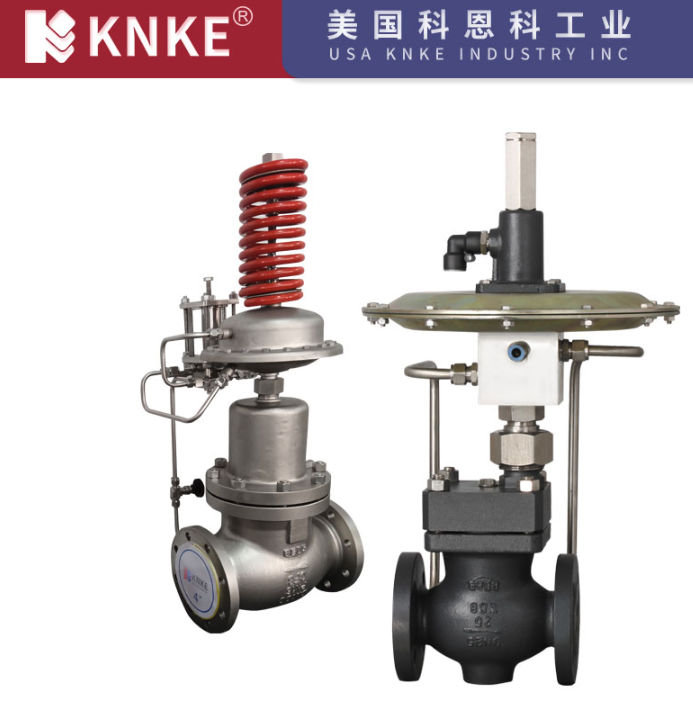

Pneumatic control valves are precision flow control devices that use compressed air as the power source, achieving control through displacement changes in a cylinder. Pneumatic control valves typically use a 4-20 mA current signal as the control signal, and precisely adjust the valve opening through auxiliary equipment such as electric valve positioners. This characteristic makes pneumatic control valves particularly effective in high-precision processes, especially in the automated control of industries such as chemical and petrochemical.
Pneumatic control valves have the advantages of quick control response, system simplicity, and inherent safety, making them ideal for use in explosive environments without requiring additional explosion-proof measures. Additionally, pneumatic control valves can be classified as normally open or normally closed, allowing for flexibility according to specific process requirements.
Key Differences Analysis
- Purpose Differences: Stainless steel ball valves are primarily used for on-off control of fluid, with the design goal of achieving quick and reliable switching operations. They are more suitable for applications that require frequent opening and closing without precise regulation. In contrast, pneumatic control valves are used for precise adjustment of flow, pressure, and other parameters, making them ideal for industrial environments requiring high precision.
- Structural Differences: The structure of stainless steel ball valves is relatively simple, using a 90° rotation of the ball to achieve opening and closing. In comparison, pneumatic control valves consist of a complex pneumatic actuator and a regulating valve, precisely controlling the valve opening through cylinder adjustments to achieve linear or equal percentage control characteristics.
- Actuator Differences: The actuator of a stainless steel ball valve primarily handles simple on-off control, with relatively straightforward action. On the other hand, the actuator of a pneumatic control valve requires precise control of cylinder displacement to ensure that the valve opening matches the input signal. This control process involves more complex feedback mechanisms and precision requirements.
- Control Precision: Pneumatic control valves provide significantly higher control precision than stainless steel ball valves, allowing for linear or equal percentage flow adjustments. Stainless steel ball valves, on the other hand, are primarily used for simple on-off operations and lack the precision needed for fine control.
In industrial production, the correct selection of valves is crucial for achieving effective and economical process control. Stainless steel ball valves and pneumatic control valves each have distinct advantages and application scenarios. Stainless steel ball valves are suitable for systems requiring quick on-off control of fluid, offering a simple and cost-effective solution. Pneumatic control valves, on the other hand, excel in precisely controlling flow, pressure, and temperature, making them suitable for complex automation requirements. Therefore, during the valve selection process, it is important to weigh the specific process requirements, control precision, and system characteristics to achieve the best process control outcomes and economic benefits.
