Ball Valve vs Angle Valve | Technical Comparison & Industrial Standards

In oil & gas, chemical processing, power generation, marine, and water-treatment facilities, valve selection directly affects plant safety, economics, and maintainability. Ball valves and angle valves both serve as shut-off devices, yet their designs, hydraulic behavior, service envelopes, and life-cycle costs differ markedly. Drawing on key international codes (API 6D, ASME B16.34, ISO 15848-1, etc.) and field experience, this paper distills their principal differences to help engineers make informed choices during P&ID design, HAZOP review, and procurement.

1. Design & Hydraulic Characteristics

Dimension	Ball Valve	Angle Valve
Flow path	Full-bore ball concentric with the pipe; straight-through flow, minimal pressure loss	90 ° turn between inlet and outlet; higher local resistance
Stroke	90 ° quarter-turn; pneumatic units close in ≤ 50 ms	Multi-turn or long stroke; finer throttling accuracy
Body styles	One-, two-, or three-piece; forged steel preferred for high pressure	L- or T-pattern; threaded, socket-weld, or butt-weld ends
Sealing options	Soft seat (PTFE) or hard seat (Stellite overlay)	Soft seats common; hard seats costlier
Vibration resistance	Spherical core distributes loads, well-suited to pump/compressor discharge	Needs extra supports to counter vibration

1.1 Pressure drop

Ball valve: Cv approaches that of plain pipe; ΔP on DN 100 lines is typically ≤ 0.05 MPa—ideal for high-flow, low-loss headers.
Angle valve: For the same size, pressure drop is roughly 1.5–2 × that of a ball valve, making it a better fit for branch lines that need throttling or flow redirection.

2. Performance Envelope

Parameter	Ball Valve	Angle Valve
Pressure rating	PN 16–PN 420 / Class 150-2500	PN 16–PN 160 / Class 150-900
Temperature range	−196 °C to 600 °C (cryogenic to ultra-high temp)	−40 °C to 425 °C
Leak-tightness	API 598 bubble-tight; ISO 15848-1 low-fugitive versions available	Same grades achievable, but hard seats raise cost
Corrosion mitigation	Body alloys/cladding (Hastelloy, ceramic liners, etc.)	Trim surface treatments (Ni-P, nitriding)
Service intervals	Seat-grease injection, quarterly He-leak test, annual actuator calibration	Seat lapping every two years; positioner recal every six months

3. Typical Service Use-Cases

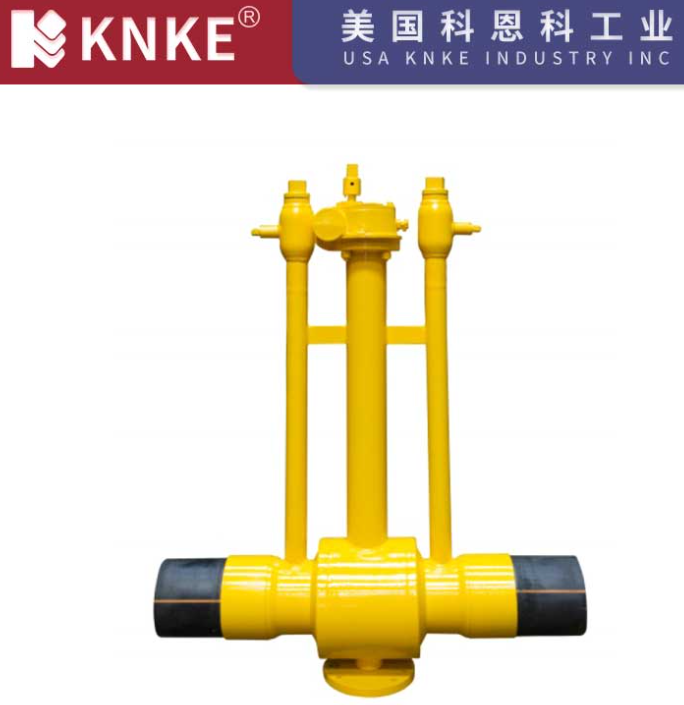

3.1 Where Ball Valves Shine

Oil & Gas: Mainline block valves and subsea ESD valves (API 6A / API 607 fire-safe, NACE MR0175 sour-service).
Chemical: Fully PTFE-lined or duplex ball valves for aggressive acids; quick shut-off to prevent polymer freeze-ups.
Power: High-temp/high-pressure steam bypasses (F91/F92), integrated into DCS for rapid isolation.

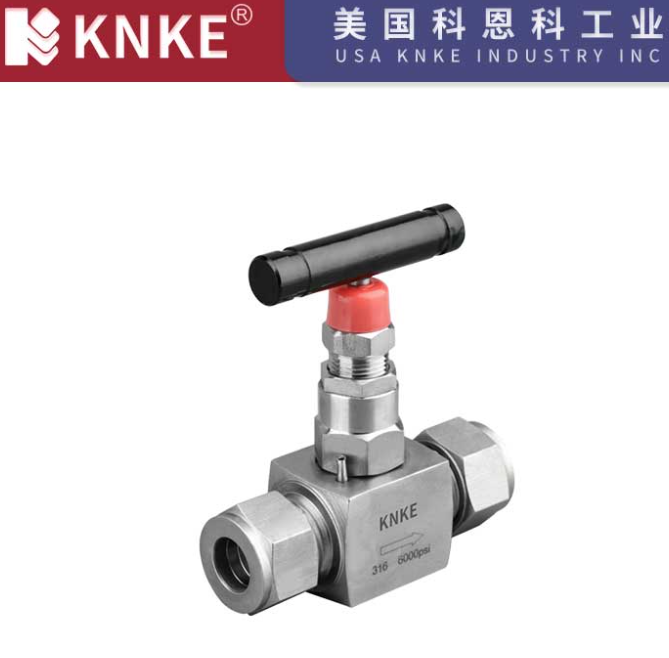

3.2 Where Angle Valves Excel

Pharma & Food: 316 L hygienic angle valves (Ra ≤ 0.8 µm) meeting FDA/GMP, suitable for CIP/SIP.
Water Treatment: RO feed or sidestream filters—angle valves regulate membrane differential pressure.
Marine: Fuel-oil and ballast systems in cramped engine rooms; ABS/LR approvals.

4. Installation & Maintenance

Aspect	Ball Valve	Angle Valve
Installation	Flange faces must stay concentric (≤ 1 mm misalignment); welding requires 100–150 °C pre-/post-heat on stainless	Threaded joints use PTFE tape; weld bevel 37° ± 5° to avoid slag blockage
Special notes	Actuator vertical on horizontal lines to avert seat wear	Fit steam lines with drip traps to prevent water hammer
Upkeep	Quarterly He-leak (≤ 1 × 10⁻⁹ Pa·m³/s) and seat-grease checks	Semi-annual positioner re-calibration ±1 %

5. Engineering Selection Guide

Process priority
- Low ΔP + fast shut-off → Ball valve
- Throttling + tight spaces → Angle valve
Fluid properties
- Particulates, sticky fluids → Ball valve’s straight bore
- Clean liquids/gases → Angle valve for lower CAPEX
Compliance
- Pressure equipment → TSG-marked models
- Hazardous zones → ATEX / IECEx certification
Life-cycle cost
- Continuous service (> 10 yr) → Ball valve’s longer intervals
- Intermittent duty → Angle valve saves 30–50 % upfront
Simulation
- For high-ΔP or velocity, run CFD to verify pressure drop and flow patterns before final spec.

Conclusion

With “straight-through flow and quarter-turn speed,” ball valves dominate high-pressure, high-flow, and ESD duties. Angle valves, thanks to their “compact 90 ° path and control capability,” thrive on branch lines, sanitary service, and space-constrained layouts. By weighing process conditions, medium characteristics, code requirements, and economics—and validating critical duties with CFD—engineers can configure valve packages that achieve optimum safety, reliability, and total cost of ownership.
