Applications of Pressure Reducing Valves

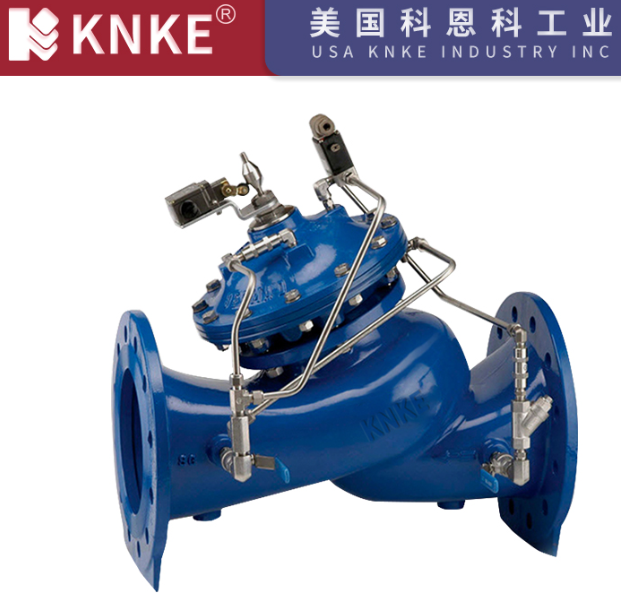

A pressure reducing valve is a critical self-operated valve that uses the energy of the medium itself to regulate and control pipeline pressure. It is widely used in domestic water supply systems, fire protection water networks, and various industrial water supply systems. By precisely adjusting the pilot valve, the outlet pressure of the main valve can be stabilized at a predetermined value, ensuring system safety and reliability. Below, we will explore the specific applications of pressure reducing valves in various fields.
1. Application of Pressure Reducing Valves in Water Heaters
Pressure reducing valves are widely used in water heaters. Typically, a pressure reducing valve is installed at the inlet of the water heater, and its main function is to reduce the impact of water pressure on the water heater tank, preventing excessive pressure from damaging the equipment. During the heating process of a water heater, the thermal expansion of water causes an increase in internal pressure, which may exceed the safety threshold. At this point, the pressure reducing valve releases excess pressure through the relief port, effectively protecting the tank and water supply pipes and extending the service life of the equipment.
2. Application of Pressure Reducing Valves in Natural Gas Pipelines
In natural gas transmission pipelines, pressure reducing valves also play a crucial role, especially in controlling pipeline pressure for media such as water, steam, and air. By adjusting the inlet pressure to reduce it to a suitable outlet pressure, the pressure reducing valve ensures the stability of the internal pressure of the pipeline. When the inlet pressure or flow rate fluctuates, the pressure reducing valve can automatically adjust the outlet pressure using the energy of the medium itself, ensuring the safety and stability of the pipeline system. It should be noted that the pressure difference between the inlet and outlet must be greater than or equal to 0.2 MPa/cm to ensure proper valve operation and control precision.
3. Application of Pressure Reducing Valves in Hydraulic Systems
In hydraulic systems, pressure reducing valves lower water pressure by applying localized resistance to water flow through the valve’s internal channels. The control of the pressure reduction range depends on the automatic adjustment of the pressure difference between the inlet and outlet on both sides of a diaphragm or piston. The proportional pressure reduction principle utilizes the pressure ratio of a floating piston within the valve body to control the pressure difference, with the pressure reduction ratio between the inlet and outlet being inversely proportional to the piston area. This proportional pressure reduction method is widely applicable in hydraulic circuits, effectively ensuring system stability and precise control under various load conditions.
4. Application of Pressure Reducing Valves in Water Piping Systems
In everyday water piping systems, pressure reducing valves are indispensable components. Their main function is to reduce and stabilize the source pressure to a set value, ensuring that subsequent control valves can receive a stable power source for precise adjustment. Water pressure reducing valves operate smoothly, without significant fluctuations, and since there is no spring mechanism inside the valve body, issues such as spring corrosion or metal fatigue failure are avoided. In addition, the pressure reducing valve features excellent sealing performance, effectively reducing both dynamic pressure (when water is flowing) and static pressure (when there is no flow). Importantly, the pressure reducing valve maintains the water flow rate while reducing pressure, ensuring both comfort and stability in water usage.
In summary, pressure reducing valves have a wide range of irreplaceable applications in multiple fields. Whether in water heaters, natural gas pipelines, hydraulic systems, or daily water piping systems, pressure reducing valves efficiently control and regulate pressure, protect equipment, and ensure the safety and stability of pipelines. Their diverse application scenarios and excellent regulation performance make them an essential component in modern water supply and gas transmission systems. Understanding the working principles and proper use of pressure reducing valves can improve system stability, extend equipment lifespan, and effectively ensure the proper operation of the system.
Frequently Asked Questions About Pressure Reducing Valves
1. What is a Pressure Reducing Valve?
A pressure reducing valve is a self-operated valve used to regulate and control pipeline pressure, widely applied in water supply, fire protection, industrial, and other fields.
2. How Does a Pressure Reducing Valve Work?
A pressure reducing valve stabilizes outlet pressure by adjusting the pilot valve, using the energy of the medium itself to automatically regulate and maintain the set pressure level.
3. What is the Role of a Pressure Reducing Valve in Water Heaters?
A pressure reducing valve reduces the impact of water pressure on the water heater tank, protecting the equipment from high-pressure damage and extending the water heater’s service life.
4. How to Choose the Right Pressure Reducing Valve?
When choosing a pressure reducing valve, factors such as pressure range, medium type, valve sealing performance, and stability should be considered based on the specific application scenario.
